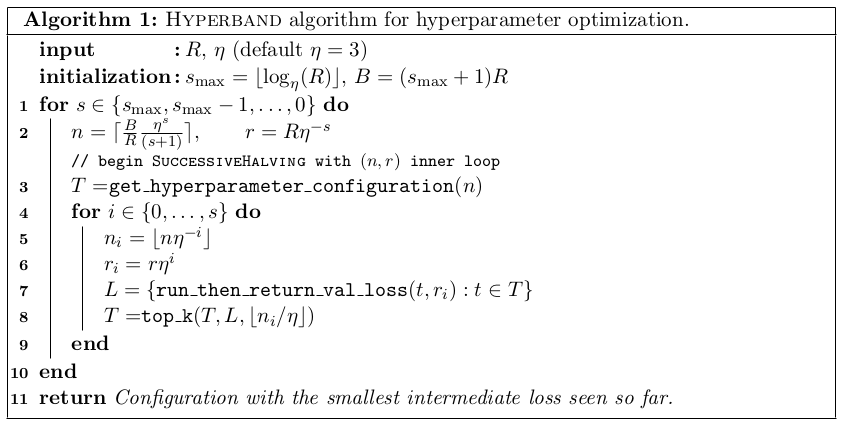

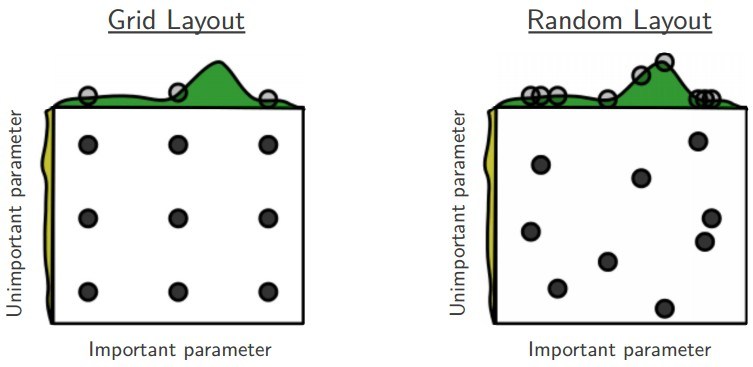

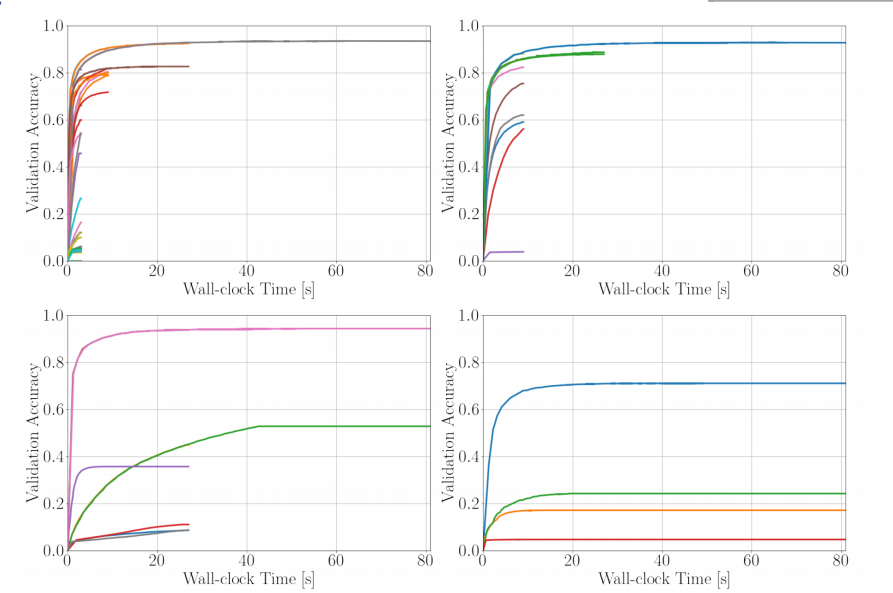

class: center, middle ### W4995 Applied Machine Learning # Parameter Tuning and AutoML 03/11/19 Andreas C. Müller ??? FIXME show figure 2x random is as good as hyperband? FIXME needs lots more polish! FIXME too long?! what?! how?! FIXME difference between hyperband and SuccessiveHalving unclear --- # Motivation - Need to select among Models - Need to select Hyper-Parameters - Need to select among preprocessing methods --- # Conditional Hyper-Parameters - Kernels - Neural Nets - Pipelines --- # Formulating model-selection as Hyperparameter Optimization - One big search, many conditional Hyper-Parameters - Categorical, integer, continuous, conditional - Different distributions --- # CASH problem - Find the best configuration - Global optimization on complex (high-dim?) space --- # Issues with Grid-Search - Need to define Grid - Exponential in number of dims --- class: middle # Black-Box Search Procedures `$$\Lambda^* = \arg\max_\Lambda f(\Lambda)$$` Parameters $\Lambda$, model-evaluation $f$. ??? General optimization of unknown, non-differentiable f, possibly no-smooth. NP Hard in general. Function f is very slow to evaluate - think training a neural net for a week. --- # Random Search  --- # Random Search with scikit-learn ```python # specify parameters and distributions to sample from from scipy.stats import randint param_dist = {"max_depth": [3, None], "max_features": randint(1, 11), "min_samples_split": randint(2, 11), "bootstrap": [True, False], "criterion": ["gini", "entropy"]} n_iter_search = 20 random_search = RandomizedSearchCV(clf, param_distributions=param_dist, n_iter=200, cv=5) ``` - lists or objects with `rvs` method - Use continuous distributions for biggest advantage --- # Bayesian Optimization, SMBO .wide-left-column[ - fit 'cheap' probabilistic function to black-box - pick next point using exploration / exploitation - Implemented as acquisition function ] .narrow-right-column[ .center[  ]] --- # Surrogate functions  ??? FIXME NEED NEURAL NETS --- # Evolutionary Methods: TPOT .center[  ] --- class: spacious # Implementations - SMAC: Random Forest model (Hutter group) - spearmint: GP (Snoek et al) - hyperopt: TPE (Bergstra, not maintained) - scikit-optimize: GP, tree, etc - GPyOpt: GP based on GPy (Lawrence group) --- class: compact, center # Criticism  <br> --    .smallest[http://www.argmin.net/2016/06/20/hypertuning/] ??? FIXME use newer hyperband figures! --- # Beyond Black-Box - Hyperparameter gradient descent - Multi-Fidelity optimization - Meta-learning - (others...) --- # Multi-Fidelity Search .smaller[Approximate function by similar cheaper function] .center[   ] ??? Top: subsample the datasets bottom: use less trees in forest --- # Multi-Fidelity Bayesian Optimization - Fit model to performance given parameters and budget - Choose parameters and budget for best exploration / exploitation - Related to multi-armed bandits and A/B testing - Differences to bandits: - non-stationary distributions - receiving loss (computing validation error) is expensive - possibly infinitely many arms (continuous parameters) --- # Successive Halving - Given $n$ configuration and budget $B$ - pick $\eta=2$ or $\eta=3$ (wording follows 2) - Each iteration, keep best halve of configurations - after $k=\log_\eta(n) + 1$ left with single configuration. - initially allocate $\frac{B}{kn}$ to each configuration, double each iteration (exact budget is slightly more complicated, see algorithm). --  --- # Successive Halving Example - configurations n=81 - total budget B=20000 ``` train 81 configurations with resources 41 train 27 configurations with resources 123 train 9 configurations with resources 370 train 3 configurations with resources 1111 train 1 configurations with resources 3333 resources total: 16638 ``` ??? Think about resources as in "maximum number of trees build in total" or "maximum number of data points used in total". --- class: center # Successive Halving (different) Example  --- # Hyperband  --- # Hyperband  --- # BOHB / HpBandSter  --- # In Practice "With the exception of the LeNet experiment (Section 3.3) and the 117 Datasets experi- ment (Section 4.2.1), the most aggressive bracket of SuccessiveHalving outperformed Hyperband in all of our experiments." .quote_author[Li et. al.] - Soon (?) in sklearn ([discussion](https://github.com/scikit-learn/scikit-learn/issues/12538)) - [HpBandSter](https://automl.github.io/HpBandSter/build/html/index.html) distributed implementation, some custom code required - [scikit-hyperband](https://github.com/thuijskens/scikit-hyperband) looks good, but doesn't do out-of-the-box subsampling - Successive halving really easy to implement yourself. --- class: middle, center # Meta-learning ## Learning from experience (other datasets) --- # Ranking - Run many algorithms on large array of datasets - Rank by "best on average" --- # Portfolios - [PoSH auto-sklearn](https://ml.informatik.uni-freiburg.de/papers/18-AUTOML-AutoChallenge.pdf) - Create diverse set so that a good one among top k - Submodular optimization problem - greedy approximation --- # Discretization ## Are continuous parameters actually important ? - Anectotal evidence that it's not. --- # Meta-Features and Meta-Models .center[  ] --- # Active Testing and Recommendations .smaller[ - [Probabilistic Matrix Factorization for AutoML (Fusi et al)](https://papers.nips.cc/paper/7595-probabilistic-matrix-factorization-for-automated-machine-learning.pdf) - https://github.com/rsheth80/pmf-automl/]  --- # Multi-Task Bayesian Optimization - Create estimate over all datasets at the same time! - Not scalable with Gaussian Processes - Maybe scalable with Neural Networks? --- # Ensemble Models  --- # Auto-sklearn - end-to-end auto-ml - seaches a fixed sklearn pipeline (4 steps) - Warm-starting with meta-features & KNN - Bayesian Optimization with SMAC https://automl.github.io/auto-sklearn/stable/index.html --- # Playing around with auto-sklearn ```python import autosklearn.classification import sklearn.model_selection import sklearn.datasets from sklearn.metrics import accuracy_score X, y = sklearn.datasets.load_digits(return_X_y=True) X_train, X_test, y_train, y_test = \ sklearn.model_selection.train_test_split(X, y, random_state=1) automl = autosklearn.classification.AutoSklearnClassifier() automl.fit(X_train, y_train) y_hat = automl.predict(X_test) print("Accuracy score", accuracy_score(y_test, y_hat)) ``` "This will run for one hour and should result in an accuracy above 0.98." --- # Practical Recommendations - Multi-Fidelity! Simple, effective! - Portfolios - BOHB / HpBandSter - auto-sklearn - TPot? ## Seems promising: - Transfering surrogates / ensembles - Collaborative filtering / active testing --- # Criticisms - Do we need 100 classifiers? - Do we need Complex Pipelines? - Creates complex models and ensembles - "Making it too easy"? --- class: middle Although we already reduced the space of considered ML algorithms substantially compared to our previous Auto-sklearn (4 vs. 15 classifiers), we could have reduced this set even further since, in the end, only XGBoost models ended up in the final ensembles for the challenge. .quote_author[Feurer et al, PoSH auto-sklearn] --- class: center, middle # Questions ?
