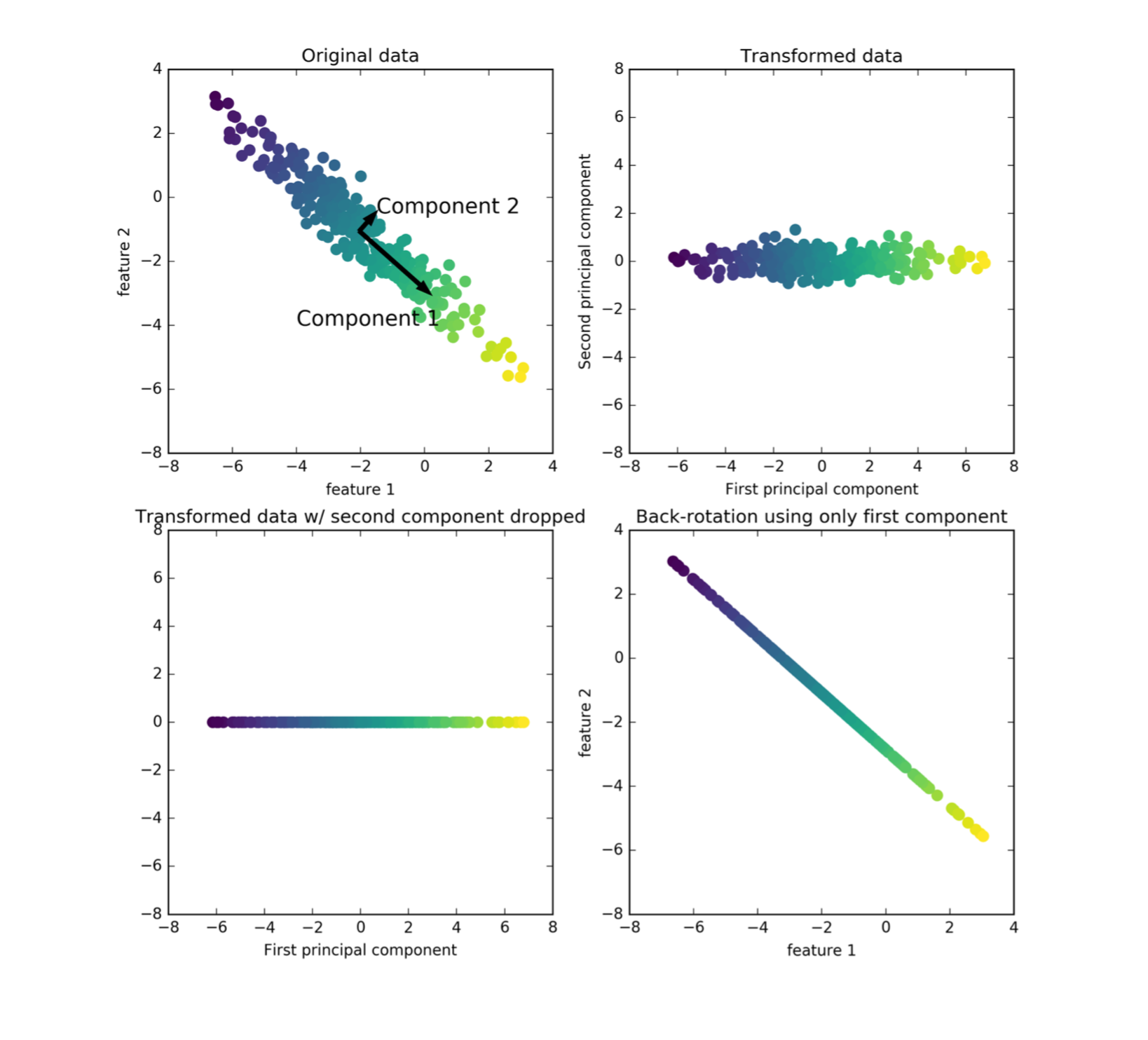

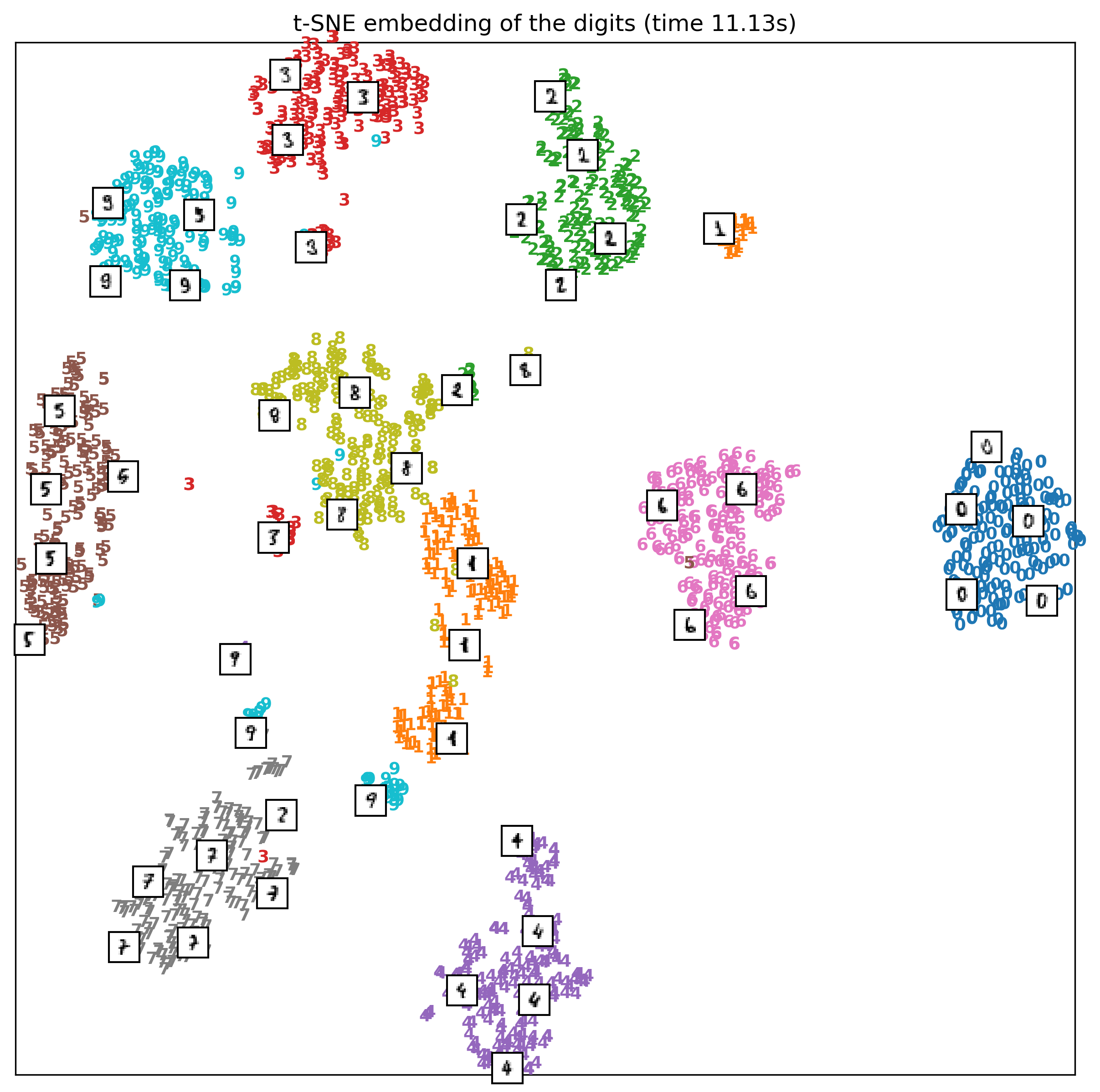

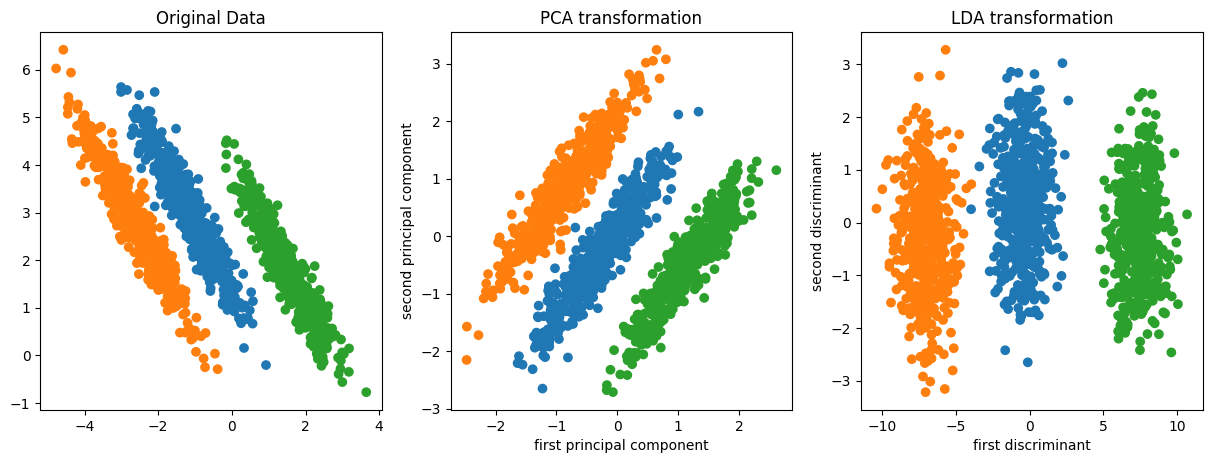

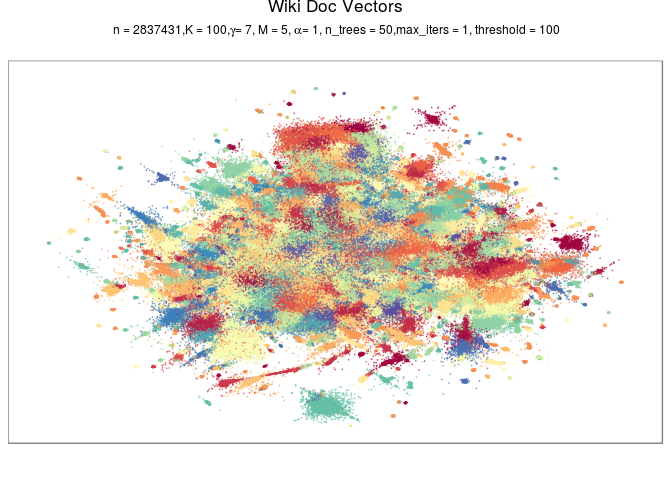

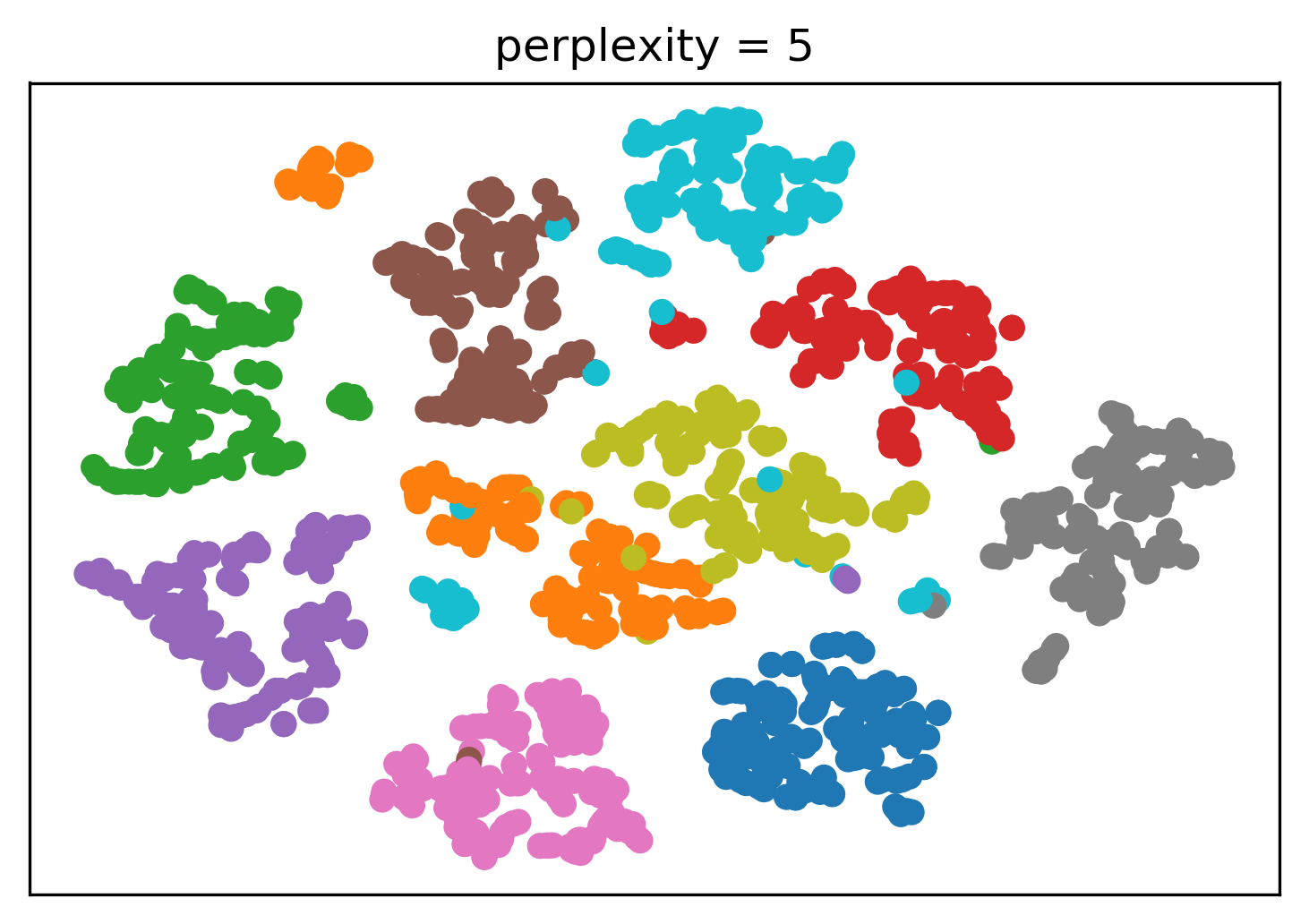

class: center, middle ### W4995 Applied Machine Learning # Dimensionality Reduction ## PCA, Discriminants, Manifold Learning 03/25/19 Andreas C. Müller ??? Today we're going to talk about dimensionality reduction, mostly about principal component analysis. We're also going to talk about discriminant analysis and manifold learning. These all slightly different sets of goals. But the main idea here is to take a high dimensional input dataset and produce the dimensionality for processing. It can be either before the machine learning pipeline or often for visualization. FIXME PCA components and scaling: xlabel for components 0 and 1 FIXME LDA projection slide with explanation and diagram! FIXME compare Largevis, t-SNE, UMAP FIXME print output in PCA slides: I need to know the dimenionality (29?) FIXME trim tsne animation FIXME write down math for inverse transform? (and for pca transform?) FIXME show unwhitened vs whitened plot --- class: centre,middle # Principal Component Analysis ??? --- .center[  ] ??? Here, we have a 2D input space, there's some point scattered here. The color is supposed to show you where the data goes in the transformations. PCA finds the directions of the maximum variant in the data. So starting with this blob of data, you look at the direction that is the most elongated. And then you look for the next opponent that captures the second most various, that's orthogonal to the first component. Here in 2-dimensions, there's only one possibility to be orthogonal to the first component and so that's our second component. If you're in higher dimensions, there are obviously infinitely many different directions that could be orthogonal, and so then you would iterate. What PCA returns is basically an orthogonal basis of the space where the components are ordered by how much variance of the data they cover and so we get a new basis of the original space. So we can do this until like N dimensions many times. In this example, I could do two times, after that there are no orthogonal vectors left. And so this new basis corresponds to rotating the input space, I can rotate the input space so that the first component is my X-axis and the second component is my Y-axis and this is the transformation that PCA learns. This doesn't do any dimensionality reduction as of yet, this is just a rotation of the input space. If I want to use it for dimensionality reduction, I can now start dropping some of these dimensions. So they are ordered by decreasing variance, I could in this example drop, for example, the second component only to regain the first component. So basically, I dropped the Y-axis and projected everything to the X line. And this would be dimensionality reduction with the PCA going from two dimensions to one dimension. And the idea is that if your data lives on a lower dimensional space, or essentially lives on lower dimensional space, embedded in high dimensional space, you could think of this is mostly aligned or Gaussian blob along this direction and there's a little bit of noise in this direction. The most information about the data is sort of along this line. The idea is that does one-dimensional projection now covers as much as possible of this data set. You can also look at PCA as being sort of a de-noising algorithm, by taking this reduced representation in the rotated space and rotating it back to the original space. So this is basically transforming the data using PCA, the rotation dropping one dimension rotating back, you end up with this. And so this is through information that is retained in this projection, basically. And so, arguably, you still have a lot of information from this dataset. --- # PCA objective(s) `$$\large\min_{X', \text{rank}(X') = r}\|X-X'\|$$` .center[  ] ??? The maximum variance view can be formalized like this. So basically, you look at the variance of a projection. So you look over all possible vectors, U1 that have norm 1 and you look at what's the variance of projecting the data X along this axis and then the maximum of this will be the maximum variance of the data. You can also rewrite this in this way. Once you compute U1, you subtract the projection onto U1 from the data. Then you get everything orthogonal to U1. And then with this dataset where you subtracted the component along U1, you can again find the direction of maximum variance, and then you get U2 and so on iterate this…. One thing that you should keep in mind here is that the direction of U1 or the PCA component doesn't matter. These two definitions of the first principle component, if you set U1 to –U1 it would be the same maximum. It only depends on the direction of U1, not the sign. So whenever you look at principal components, the sign is completely meaningless. Restricted rank reconstruction --- class:split-40 # PCA objective(s) .left-column[ `$$\large\max\limits_{u_1 \in R^p, \| u_1 \| = 1} \text{var}(Xu_1)$$` `$$\large\max\limits_{u_1 \in R^p, \| u_1 \| = 1} u_1^T \text{cov} (X) u_1$$` ] .smaller.right-column[ .center[  ] ] ??? So second way to describe PCA is using Reconstruction Error. I can look at how well this reconstruction here matches the input space. And if I want a reconstruction X’, that is the best possible in the least squares sense, so that is the square norm. If I look at the square norm of X – X’, then this is minimized exactly when I'm using X’, X’ is the PCA reduction. This is like written in a slightly different way. Because if you solve this minimization problem, then you don't get the rotation back, you get the data back. But this problem is exactly solved by basically rotating using PCA direction, dropping the data and then rotating back. Maximizing the variance is the same thing as minimizing the Reconstruction Error, given a fixed number of dimensions. Find directions of maximum variance. (Find projection (onto one vector) that maximizes the variance observed in the data.) Subtract projection onto u1, iterate to find more components. Only well-defined up to sign / direction of arrow! --- # PCA Computation - Center X (subtract mean). - In practice: Also scale to unit variance. - Compute singular value decomposition:  ??? If I want to apply PCA to my dataset, the first thing I have to do, which is sort of part of the algorithm subtracts the mean. Any package will subtract the mean for you before it does the SVD. What you should probably also do in practice is to scale the data to unit variance. And then the PCA algorithm just computes the singular level decomposition. We decompose the data X into an orthogonal, a diagonal, and an orthogonal. V^T is number of features, U is number of samples times number of samples, D is diagonal containing singular values. Singular values correspond to the variance of each of these directions. Usually, in SVD you sort them by singular values. So the largest singular value corresponds to the first principle components. There's an additional processing step that you can do which is the most basic form of PCA. You can also use these entries of the diagonal to really scale the data in the rotated space so that the variance is the same across each of the new dimensions. --- class: center # Whitening  ??? So I take my original data, I rotate it, and then I scale each of the dimension so that they have standard deviation one. It’s basically the same as doing PCA and then doing standard scaler. You can see now the variance, visually looks like a ball, it was a Gaussian before. In the context of signal processing, in general, this is called whitening. And if you want to use PCA as a feature transformation, to extract features you might want to do that, because otherwise, the magnitude of the first principle component will be much bigger than the magnitude of the other components since you just rotated it. So the small variance directions will have only very small variance because that's how you define them. The question here is do you think the principal components are of similar importance? Or do you think the original feature is of similar importance? And if you think the principal components are of similar important then you should do this. So if you want to go on and put this in a classifier, this might be helpful. But I don't think I can actually give you a clear rule when you would want to do this or when not to. But it kind of makes senses if you think of it as being centered scaler in a transformed space that seems like something that might be helpful for a classifier. Same as using PCA without whitening, then doing StandardScaler. --- class: split-40 # PCA for Visualization .tiny-code.left-column[```python from sklearn.decomposition import PCA print(cancer.data.shape) pca = PCA(n_components=2) X_pca = pca.fit_transform(cancer.data) print(X_pca.shape) plt.scatter(X_pca[:, 0], X_pca[:, 1], c=cancer.target) plt.xlabel("first principal component") plt.ylabel("second principal component") components = pca.components_ plt.imshow(components.T) plt.yticks(range(len(cancer.feature_names)), cancer.feature_names) plt.colorbar() ```  ] .right-column[ ] ??? I want to show you an example on real data set. So the first data set I'm going to use it on is the breast cancer data set. The way I use PCA most often is probably for visualization. I often do PCA with two components, because my monitor has two dimensions. I fit, transform the data and I scatter it and then I get the scatter plot of the first principle component versus second principal component. So this is the binary classification problem, PCA obviously is a completely unsupervised method, so it doesn't know what the class labels but I could look whether this is a hard problem to solve or is it an easy problem to solve. If I look at this plot, maybe it looks like it's a relatively easy problem to solve with the points being relatively well separated. Now I look at the principal component vectors. So there are two principal components, each of them has number of features many dimensions. So this is shown here as a heat map. And you can see that there are basically two features that dominate the principal components, which is mean area and worst area. And all the rest of the entries are approximately zero. So actually, I didn't rotate my data at all, I just looked at two features. So I didn't scale my data, if I don't scale my data and a particular feature has a much larger magnitude, this feature will basically be the first principle component because if I multiply a feature by 10,000, this feature will have the largest variance of everything. There will be no direction that has a larger variance than that. --- class:spacious # Scaling! .tiny-code[```python pca_scaled = make_pipeline(StandardScaler(), PCA(n_components=2)) X_pca_scaled = pca_scaled.fit_transform(cancer.data) plt.scatter(X_pca_scaled[:, 0], X_pca_scaled[:, 1], c=cancer.target, alpha=.9) plt.xlabel("first principal component") plt.ylabel("second principal component") ```] .center[] ??? So now I scale the data. And then I get two components on the cancer data set. And now actually the data looks even better separated. Even with this unsupervised methods it very clearly shows me what separation of the classes is, I can also see things like the yellow class looks much denser than the purple class, maybe there are some outliers here, but this definitely gives me a good idea of this dataset. So this is much more compact than looking at a 30x30 scatter matrix, which I couldn't comprehend. So we can look at the components again. Imagine one feature with very large scale. Without scaling, it’s guaranteed to be the first principal component! --- class:split-40 # Inspecting components .tiny-code[```python components = pca_scaled.named_steps['pca'].components_ plt.imshow(components.T) plt.yticks(range(len(cancer.feature_names)), cancer.feature_names) plt.colorbar() ```] .smaller.left-column[  ] .right-column[ ] ??? So components are stored in the components attribute of the PCA class. And you can see now all of the features contribute to the principal components. And if you're an expert in the area, and you know what these features mean, sometimes it's possible to read something in this. It's definitely helpful often to look at these component vectors. Another way to visualize the component vectors is to do a scatter plot. But that only works basically for the first two principal components. So you can basically look at the positions of the original features, each dot here is one of the original features, and you can look at how much does this feature contribute to principal component one versus principal component two. And so I can see that the second principal component is dominated by mean fractal dimension and the first personal component is dominated by the worst perimeter. And worse perimeter negatively contributes to the second principal component. And worst case point is also very strong in the first principle component but has zero in the second principal component. This was sort of the first approach trying to use PCA for 2-dimensional visualization and trying to understand what the components mean. sign of component is meaningless! --- # PCA for regularization .tiny-code[ ```python from sklearn.linear_model import LogisticRegression X_train, X_test, y_train, y_test = train_test_split(cancer.data, cancer.target, stratify=cancer.target, random_state=0) lr = LogisticRegression(C=10000).fit(X_train, y_train) print(lr.score(X_train, y_train)) print(lr.score(X_test, y_test)) ``` ``` 0.993 0.944 ``` ```python pca_lr = make_pipeline(StandardScaler(), PCA(n_components=2), LogisticRegression(C=10000)) pca_lr.fit(X_train, y_train) print(pca_lr.score(X_train, y_train)) print(pca_lr.score(X_test, y_test)) ``` ``` 0.961 0.923 ``` ] ??? One thing that PCA is often used for, in particular for statistics oriented people, is using it for regularizing a model. You can use PCA to reduce the dimensionality of your data set and then you can do a model on the on the reduced dimensional data set. Since it has fewer features, this will have less complexity, less power so you can avoid overfitting by reducing the dimensionality. I’ve given an example here on the same data set. I'm using logistic regression, and I basically turn off regularization. Instead of using L2 regularization in linear regression, I'm trying to do reduce the input space. So you can see that, if I do that, I basically overfit the data perfectly. So on the training dataset, I have 99.3% accuracy, and on test dataset I have 44.4% accuracy. Now if I use PCA with two dimensions, I reduce this down to just two features. I basically reduce overfitting a lot so I get a lower training score but I also get a lower test score. Generally, if you find that you only need 2-dimension to solve a problem, then that’s a very simple problem. But if you're shooting for accuracy, clearly you’ve regularized too much, you're restricted to the model too much by just using two components. One way to figure out a good number of components, obviously, doing grid search with cross-validation. Another way is to look at the variance that it is covered by each of the components, so this is basically the singular values. --- # Variance covered .center[  ] .tiny-code[```python pca_lr = make_pipeline(StandardScaler(), PCA(n_components=6), LogisticRegression(C=10000)) pca_lr.fit(X_train, y_train) print(pca_lr.score(X_train, y_train)) print(pca_lr.score(X_test, y_test)) ``` ``` 0.981 0.958 ```] ??? So here are for the singular values. Here is the explained variance ratio, basically how much of the variance in the data is explained by each of the components. The components are sorted by decreasing variance so obviously, this always goes down. But now I can sort of look for kinks in this variance that's covered and I can see how many components it makes sense to keep for this dataset maybe if you don't want to do a grid search. Looking at the top plot, it looks like the six components are enough. And if I actually use six components, I overfit slightly less in the training dataset, I get a better result than I did without using PCA. People from statistics like this better than regularization since this doesn't bias to coefficients. I like it slightly less because the PCA is completely unsupervised and it might discard important information. But it's definitely a valid approach to regularize linear model. If you're using a linear model, what's nice is that you can still interpret the coefficients afterward. The linear model is just the dot product with the weights and PCA is just a rotation. And so it can take the coefficients and rotate them back into the original space. Could obviously also do cross-validation + grid-search --- class:split-40 # Interpreting coefficients .tiny-code[```python pca = pca_lr.named_steps['pca'] lr = pca_lr.named_steps['logisticregression'] coef_pca = pca.inverse_transform(lr.coef_)```] .center[Comparing PCA + Logreg vs plain Logreg:] <br /> .left-column[  ] .right-column[  ] ??? So that's what I'm doing here. I use the logistic regression coefficients in the PCA space, I think this was six components. And so then I can scatter them and look at them, what do these components mean, in terms of the original features. Here, I’m looking at with no PCA, which is just the logistic regression on the original data set, versus doing PCA, doing logistic regression on the six-dimensional data set, and then rotating the six coefficients back into the input space. Even though I did this transformation of the data, I can still see how this model in the reduced feature space uses these features. The left plot shows plain logistic regression coefficients and the back-rotated coefficients with PCA. The plot on the right shows for each feature the coefficient in the standard model and in the model including PCA. And you can see that they're sort of related. They're not going to be perfectly related because I reduced the dimensionality of this space and also the model with PCA did better in this case. So clearly they’re different. Rotating coefficients back into input space. Makes sense because model is linear! Otherwise more tricky. --- class:split-40 # PCA is Unsupervised! .left-column[  ] -- .right-column[  ] ??? Look at this dataset. It's a very fabricated data set. This is a 3d classification problem in two dimensions. This looks very unstructured. So if I do a PCA, I get this. And so if I now look at the first two principal components, the problem is actually completely random, because that's how I synthetically constructed it. And if I look at the third principal component, the third component perfectly classifies the dataset. Even though I constructed to be like that, there's nothing that prevents the data set in reality not to look like that. Just because the data is very small, or has small variance in a particular direction doesn't mean this direction is not important for classification. So basically, if you’re dropping components with small variance, basically what you're doing is you're doing feature selection in the PCA space based on the variance of the principal components. And so that's not necessarily a good thing. Because small variance in principal component doesn't necessarily mean uninformative. Dropping the first two principal components will result in random model! All information is in the smallest principal component! --- # PCA for feature extraction .center[  ] ??? Next, I want to give an example of where PCA has been used, at least historically, for faces. This is a data set collected in the 90s. The idea is you have a face detector, given the face, you want to identify who this person is. Working on the original pixel space kind of seems like a pretty bad idea. The images here have about 6000 pixels, they're relatively low resolution but still has like 5000 features, just looking at the pixel values, which means very high dimensional. You can do a PCA and this is sort of the components that you get from this. You can see here, for example, here, from which direction does light come from, how much eyebrows do you have and do you have a mustache. These are the PCA components constructed on this data set. The idea is that these PCA components can be better features for doing classification than the original pixels. And this is an application where whitening helps. Rescaling the feature components so that they all have the same variance actually helps classification. One different way to think about these components instead of thinking about the mass rotations is you can think about equivalently that each point is a linear combination of all the components because the components form a basis of the input space. You can think that each picture, for example, Winona Ryder here, is a linear combination of all the components and these coefficients of linear combinations are the projection in the PCA space. I mean, these are the coefficients in the PCA bases after rotation. To me, this makes it more interpretable what these components might mean. So if I have, light from the person's right, then I would expect X1 want to be high, because then this component becomes active. If the light comes from a different direction, I would expect X1 to be negative. If there's no left or right gradient, I would expect the component to be about zero. --- # 1-NN and Eigenfaces .tiny-code[ ```python from sklearn.neighbors import KNeighborsClassifier # split the data into training and test sets X_train, X_test, y_train, y_test = train_test_split( X_people, y_people, stratify=y_people, random_state=0) print(X_train.shape) # build a KNeighborsClassifier using one neighbor knn = KNeighborsClassifier(n_neighbors=1) knn.fit(X_train, y_train) knn.score(X_test, y_test) ``` ``` (1547, 5655) 0.23 ``` ] -- .tiny-code[ ```python pca = PCA(n_components=100, whiten=True, random_state=0).fit(X_train) X_train_pca = pca.transform(X_train) X_test_pca = pca.transform(X_test) X_train_pca.shape ``` ``` (1547, 100) ``` ```python knn = KNeighborsClassifier(n_neighbors=1) knn.fit(X_train_pca, y_train) knn.score(X_test_pca, y_test)) ``` ``` 0.31 ``` ] ??? Alright, so now let's look at what it does. So here, on this dataset, I’m doing one nearest neighbor classifier. The reason I'm using one nearest neighbor classifier is that that's often used if people want to demonstrate what a good representation of the data is. The idea is that one nearest neighbor classifier just looks at your nearest neighbor and so it only relies on your representation of the data. So if 1NN classifier does well, your representation of the data is good. That’s the intuition behind this. If I use a linear model that's penalized, PCA will probably not make a lot of difference actually. Here with the nearest neighbor equal to one, you get about 23% accuracy. And you can see that the data set is very wide. So there are a lot more features than there are samples. If there are more features than in samples. PCA can only do as many components as there is the minimum of features and samples. So in this case, I could project a maximum of up to 1547 directions because this is the rank of the matrix and I can only get so many Eigenvectors. If I do the same thing with PCA, I go down from 5600 dimensions to only 100 dimensions and then the 1NN classifier actually does quite a bit better. Now it's 31% accurate. You could do a grid search to find the number of components or you could look at the explained variance ratio. --- # Reconstruction .center[  ] ??? Another way to select how many components you want for classification instead of looking at the explained various ratios is looking at the reconstructions. That is most useful if you can look at the data points in some meaningful way. So for example, here, the bottom right image in my illustration is what happens if I rotate to 10 dimensions and then I rotate back to the original space. For example, you can see here if I use only 10 components, these people are not recognizable at all. So I wouldn't expect 10 components to make to make a lot of sense. On the other hand, if I look at 500 components, even though there’s high-frequency noise the person is recognizable. Using 500, I'm probably not going to lose anything here. This is also one way to see how many components you might need for a particular result. And so if I just use two components, you would see probably nothing. And yet, if I used as many components as there are samples in this case, if I used like 1500 components, it would be completely perfect, because I would basically rotate in space, not drop any dimensions and rotate back. Another thing that's interesting when you’re doing reconstructions is there’s a different application for PCA called outlier detection. You can think of PCA as a density model in the sense, you're fitting a big Gaussian and then you dropping directions of small variance. And so you can look at what are the faces that are reconstructed well versus those that are not reconstructed well. And so if they're not reconstructed as well, that means they are quite different from most of the data. --- class:split-40 # PCA for outlier detection .tiny-code[```python pca = PCA(n_components=100).fit(X_train) reconstruction_errors = np.sum((X_test - pca.inverse_transform(pca.transform(X_test))) ** 2, axis=1) ``` ] .left-column[  <br /> Best reconstructions ] .right-column[  <br /> Worst reconstructions ] ??? So here, I used 100 components. And now I can look at what's the reconstruction error of rotating the data, dropping some components and rotating back, and the ones with good reconstructions are the ones that look like most of the data. And the ones that have bad reconstructions are the ones that are sort of outliers. If something looks a lot like the data, that's probably something the principal component will cover. Whereas if something looks very different than the data, that's something that principal component will not cover. If you look at these images, what is an outlier and what is not an outlier has nothing to do with the person in it but has only to do with the cropping of the image. So these images are all not very well aligned, they have like tilted head, wearing glasses, cropped too wide, cropped not wide enough, wearing caps and so on. Since they look very different from most of the images, and that's why they're outliers. But you can use this in general, as a density model, basically, looking at how well can the data point be reconstructed with PCA. There are more uses of PCA. These are like a couple of different applications of PCA that all have sort of quite different goals and quite different ways of setting dimensionality. --- class: middle # Discriminant Analysis ??? So the next thing I want to talk about is discriminate analysis. In particular, linear discriminate analysis. This is also a classifier, but it also can do dimensionality reduction. --- class: spacious # Linear Discriminant Analysis aka Fisher Discriminant `$$ P(y=k | X) = \frac{P(X | y=k) P(y=k)}{P(X)} = \frac{P(X | y=k) P(y = k)}{ \sum_{l} P(X | y=l) \cdot P(y=l)}$$` ??? Linear Discriminant Analysis is also called LDA, but never call it LDA because LDA also means Latent Dirichlet Allocation and so it might be confusing. Linear Discriminant Analysis is a linear classifier that builds on Bayes rule, in that, it assumes the density model for each of the classes, if you have a density model for each of the classes, you can build a classifier using Bayes rule. This is Bayes rule of having a joint distribution of X and Y. If you then look at the conditional probability of X, you can say that the probability of Y being a particular class given X is the probability of X given Y is class, times probability of being in this class divided by P(X). And so you can expand this now here, the P(x) as a sum over all classes. And so the only thing you really need is a probability distribution of P(X) given a particular class. So if you fix any possibilities distribution for particular class Bayes rule gives you like a classifier. Linear Discriminant Analysis does basically one particular distribution, which is the Gaussian distribution. - Generative model: assumes each class has Gaussian distribution - Covariances are the same for all classes. - Very fast: only compute means and invert covariance matrix (works well if n_features << n_samples) - Leads to linear decision boundary. - Imagine: transform space by covariance matrix, then nearest centroid. - No parameters to tune! - Don’t confuse with Latent Dirichlet Allocation (LDA) --- class: spacious # Linear Discriminant Analysis aka Fisher Discriminant `$$ P(y=k | X) = \frac{P(X | y=k) P(y=k)}{P(X)} = \frac{P(X | y=k) P(y = k)}{ \sum_{l} P(X | y=l) \cdot P(y=l)}$$` `$$ p(X | y=k) = \frac{1}{(2\pi)^n |\Sigma|^{1/2}}\exp\left(-\frac{1}{2} (X-\mu_k)^t \Sigma^{-1} (X-\mu_k)\right) $$` ??? So what we're doing is basically, we're fitting a Gaussian to each of the classes, but we're sharing the covariance matrix. So for each class, we estimate the mean of the class, and then we estimate the joint covariance matrix, so we subtract the mean of the class from all the data points, and then we compute the covariance matrix of that. So now we have fitted Gaussian into each class, they all have the same covariance matrix and then we can apply this rule. And this gives us a classifier. --- class: spacious # Linear Discriminant Analysis aka Fisher Discriminant `$$ P(y=k | X) = \frac{P(X | y=k) P(y=k)}{P(X)} = \frac{P(X | y=k) P(y = k)}{ \sum_{l} P(X | y=l) \cdot P(y=l)}$$` `$$ p(X | y=k) = \frac{1}{(2\pi)^n |\Sigma|^{1/2}}\exp\left(-\frac{1}{2} (X-\mu_k)^t \Sigma^{-1} (X-\mu_k)\right) $$` `$$ \log\left(\frac{P(y=k|X)}{P(y=l | X)}\right) = 0 \Leftrightarrow (\mu_k-\mu_l)\Sigma^{-1} X = \frac{1}{2} (\mu_k^t \Sigma^{-1} \mu_k - \mu_l^t \Sigma^{-1} \mu_l) $$` ??? You can actually write this in a slightly different way. The decision boundary between the two classes is the same as this formula on the right. What this is basically, the single data point lies on the decision boundary, if inverse square matrix times x is some constant. This is actually just a nearest centroid classifier in the space that was rotated by this joint covariance matrix or rotated and stretched by the joint covariance matrix. So basically, I compute the joint covariance matrix and then I look at what's the closest mean and I adjust it based on the prior probabilities of the class. --- class: spacious # Quadratic Discriminant Analysis LDA: `$$ p(X | y=k) = \frac{1}{(2\pi)^n |\Sigma|^{1/2}}\exp\left(-\frac{1}{2} (X-\mu_k)^t \Sigma^{-1} (X-\mu_k)\right) $$` QDA: `$$ p(X | y=k) = \frac{1}{(2\pi)^n |\Sigma_k|^{1/2}}\exp\left(-\frac{1}{2} (X-\mu_k)^t \Sigma_k^{-1} (X-\mu_k)\right) $$` ??? - Each class is Gaussian, but separate covariance matrices! - More flexible (quadratic decision boundary), but less robust: have less points per covariance matrix. - Can’t think of it as transformation of the space. ??? Quadratic Discriminate Analysis is exactly the same thing, only that you have a separate covariance matrix for each of the classes. This makes a more flexible classifier, but also, you have fewer points to estimate each of the various matrices. So you have many more parameters, which makes it a little bit harder to fit. --- class:center  ??? If your data points are actually Gaussian, then obviously, this works well because it assumes each class is a Gaussian. If they have the same covariance matrix, Linear Discriminant Analysis obviously finds the perfect boundary. If they have different covariance matrix, then Quadratic Discriminant Analysis does better. What does this all have to do with dimensionality reduction? So we can use it as a classifier. Linear Discriminant Analysis is just a linear classifier with a particular probabilistic model. If I want a linear classifier, I’ll probably use a logistic regression instead. But what’s nice about this is the joint covariance function. --- # Discriminants and PCA - Both fit Gaussian model - PCA for the whole data - LDA multiple Gaussians with shared covariance - Can use LDA to transform space! - At most as many components as there are classes - 1 (needs between class variance) ??? Linear Discriminant Analysis compared to PCA, they both fit a Gaussian to the data. The PCA basically fits a Gaussian to the whole dataset while Linear Discriminant Analysis fits multiple Gaussian with a shared covariance structure. So that means we can use this covariance structure to rotate our space or stretch our space using Linear Discriminant Analysis. Because of the way it's defined, we can get as many components as there are classes minus one because you basically look at the vector that connects the means of the classes in the rotated space. So you rotate the space, and then you look at the space spend by the means. --- class:center # PCA vs Linear Discriminants  ??? Here's an example of doing Linear Discriminant Analysis versus PCA on a synthetic dataset where I have three classes and they all share a covariance matrix. Obviously, that's the case Linear Discriminant Analysis was designed for. If I do a PCA, PCA can’t really do a lot here because it flips the x-axis because jointly all three of this kind of looked like Gaussian and PCA is completely unsupervised so it can't distinguish between these three. If I used Linear Discriminant Analysis, it will a give me this. And basically, the first discriminant that I mentioned here will be the one that perfectly separates all the means. So it gets out the interesting dimensions that helped me classify. --- class:center # Data where PCA failed  ??? So if I look at the data set that I created so that PCA failed. So here, this was the original data set, all the information was in the third principal component, if I do Linear Discriminant Analysis I will get only one component. The one component that was found by Linear Discriminant Analysis, it's just the one that perfectly separates the data. So this is a supervised transformation of the data that tries to find the features that best separate the data. I find this very helpful for visualizing classification data sets in a way that's nearly as simple as PCA but can take the class information into account. --- # Summary - PCA good for visualization, exploring correlations - PCA can sometimes help with classification as regularization or for feature extraction. - LDA is a supervised alternative to PCA. ??? PCA, I really like for visualization and for exploring correlations, you can use it together with a classification for regularization if you have lots of features. Often, I find that regularization of the classifier works better. T-SNE probably makes the nicest pictures of the bunch. And if you want a linear transformation of your data in a supervised setting Linear Discriminant Analysis is a good alternative to PCA. LDA also also yields a rotation of the input spacA --- class: centre,middle # Manifold Learning ??? Manifold learning is basically a class of algorithms that are the much more complicated transformation of the data. A manifold is a geometric structure in higher dimensions. So the idea is that you have low dimensional space, and sort of embedded into a high dimensional space. The classical example is this Swiss roll. --- class: center, middle  ??? Here, this is sort of a two-dimensional data set that was embedded in a weird way in the three-dimensional data set. And you hope to recover the structure of the data. And the structure of the data here would be the 2D structure of the layouts with Swiss roll. So PCA can't do that, because PCA is only linear. So if you would project this down with two dimensions, it's going to smooch all of these together and the blue points will be very close to the red points, if it projects down this axis, for example. And that's sort of not really what the geometry of the data is like. So for this, you would need nonlinear transformations of the input space that can sort of try to capture the structure in the data. Learn underlying “manifold” structure, use for dimensionality reduction. --- # Pros and Cons - For visualization only - Axes don’t correspond to anything in the input space. - Often can’t transform new data. - Pretty pictures! ??? Manifold learning is for visualization purposes only. One of the problems is the axis don't correspond to anything, mostly. And often you can’t transform your data, but you can get pretty pictures for your publications or to show your boss. These are mostly used for exploratory data analysis and less in a machine learning pipeline. But they’re still sort of useful. --- # Algorithms in sklearn - KernelPCA – does PCA, but with kernels! <br /> Eigenvalues of kernel-matrix - Spectral embedding (Laplacian Eigenmaps) <br />Uses eigenvalues of graph laplacian - Locally Linear Embedding - Isomap “kernel PCA on manifold” - t-SNE (t-distributed stochastic neighbor embedding) ??? So some of the most commonly used algorithms which are in scikit-learn are… KernelPCA, which is just PCA but with kernels. So you set up the covariance matrix, you look at the kernel matrix. Spectral embedding, which looks at the eigenvalues of the graph Laplacian. It's somewhat similar to kernel methods but you compute the eigenvectors off like a similarity matrix. There’s locally linear embedding. There's Isomap. Finally, t-SNE. t-SNE stands for t-distribution stochastic neighbor embedding, this is sort of the one that maybe has the least strong theory behind it. But they're all kind of heuristics and a little bit of hacky. t-SNE is something that people found quite useful in practice for inspecting datasets. --- # t-SNE `$$p_{j\mid i} = \frac{\exp(-\lVert\mathbf{x}_i - \mathbf{x}_j\rVert^2 / 2\sigma_i^2)}{\sum_{k \neq i} \exp(-\lVert\mathbf{x}_i - \mathbf{x}_k\rVert^2 / 2\sigma_i^2)}$$` -- `$$p_{ij} = \frac{p_{j\mid i} + p_{i\mid j}}{2N}$$` -- `$$q_{ij} = \frac{(1 + \lVert \mathbf{y}_i - \mathbf{y}_j\rVert^2)^{-1}}{\sum_{k \neq i} (1 + \lVert \mathbf{y}_i - \mathbf{y}_k\rVert^2)^{-1}}$$` -- `$$KL(P||Q) = \sum_{i \neq j} p_{ij} \log \frac{p_{ij}}{q_{ij}}$$` ??? The main idea of t-SNE is that you define a probability distribution over your data points, given one data point, you want to say, “If I'm going to pick one of my neighbors at random, and I'm going to do this weighted by distance, how likely is it I'm going to pick neighbor I?” This is just a Gaussian distribution with a particular sigma that's dependent on the data point. So around each data point, you look at the density of their neighbors and you make it symmetric. Assuming, we have embedded our data into some Yi and now it can look at the distance between two of these Ys but we're not using Gaussian, we’re using t-distributions. So what you're doing then is, you initialize the Yi’s randomly, and then you do gradient descent to basically make these two distributions similar. This is quite different from other embedding methods. Here, we're not learning transformation at all, we’re just assigning these Yi’s randomly in our target space, and then move them around so that the distances are similar to the distances in the original space. What this means is basically things that were similar in your original space should be similar in the new space as well. The reasons that they use a student-t here instead of a Gaussian is because they didn't want to focus too much on things that are too far away. You only want to focus on the points that are pretty close to you. This is used for embedding into two and three-dimensional spaces. So 99% of the time you're using this with the Yi being in two-dimensional space and the Xi being the original data points. The sigma is adjusted locally depending on how dense the data is in a particular region. But there's the overall parameter which is called the perplexity which basically regulates how the local sigmas are set. So perplexity is some transformation of the entropy of the distribution. So you set the Sigma such that the entropy of the distribution is the parameter you're setting. If you set perplexity parametric low, you going to look at only the close neighbors. If you set it large, you're going to look at a lot of neighbors. This will indirectly influence the sigma. - Starts with a random embedding - Iteratively updates points to make “close” points close. - Global distances are less important, neighborhood counts. - Good for getting coarse view of topology. - Can be good for nding interesting data point - t distribution heavy-tailed so no overcrowding. - (low perplexity: only close neighbors) --- class:center  ??? (Read the next slide and come to this) So one way it can help me understand the data, this is actually with different random seats so look slightly different. Here, I show some of the images, so you can get an idea of what's happening. You can see that if the one is more angled and has like a bar at the bottom, it's grouped over here. And if the one is more straight and doesn't have a bar, that group over here. The nines got actually split up into three groups. These are actually pretty natural cluster, so it found out that there are different ways to write nine with a bar in the bottom and without a bar at the bottom. Writing the code for this is a little bit of a hassle. But often I find it quite helpful to look at these t-SNE embedding and looking at outliers, helps me understand my dataset. One of the downsides of this is, I didn't write anything on the axis, because there's nothing on the axis. These are randomly initialized data points that have been moved around to have similar distances. This is completely rotationally variant. So if I rotated this picture or flipped it, it would still mean the same thing. So there's no possible interpretation for the axis. --- class:split-40 .smaller[```python from sklearn.manifold import TSNE from sklearn.datasets import load_digits digits = load_digits() X = digits.data / 16. X_tsne = TSNE().fit_transform(X) X_pca = PCA(n_components=2).fit_transform(X) ```] .left-column[] -- .right-column[] ??? Now I want to show you some of the outcomes. This is a PCA visualization of digit dataset, so both PCA and peacenik are completely unsupervised. This is just doing PCA with two components, first principle, and second principal component, and then I color it by the class labels. PCA obviously doesn’t anything about the class labels, I just put them in here so we can see what's happening. You can see that sort of some of these classes is pretty well separated, others are like, kind of smooshed together. This is in t-SNE, when I first saw this I thought this was pretty impressive, because this Algorithm is completely unsupervised, but it still manages to mostly group nearly all of these classes in very compact clusters. In this completely unsupervised method, I could sort of draw boundaries by hand in 2D from the original 64-dimensional space and I could group the data. This 2D view can help me understand the data. --- class: center, compact # Showing algorithm progress  .smallest[https://github.com/oreillymedia/t-SNE-tutorial] --- class:split-40 # Tuning t-SNE perplexity .left-column[  ] .right-column[  ] ??? The one parameter I mentioned, is perplexity. I want to give a couple of illustrations of the influence of this perplexity parameter. This is again the digit dataset. The results will be slightly different for each run because of the randomness. The author suggests perplexity equal to 30 and says it always works. Here it’s set to 2, 5, 30 and 300. And you can see that 30 actually does produce the most compact clusters. What will give you the best results depends on the dataset. Generally, for small data sets, I think people found lower perplexity works better while for larger data sets, larger perplexity works better. And again, there’s sort of a tradeoff between looking at very close neighbors and looking at neighbors further away. - Important parameter: perplexity - Intuitively: bandwidth of neighbors to consider - (low perplexity: only close neighbors) - smaller datasets try lower perplexity - authors say 30 always works well. --- class:spacious   ??? Here's the same for a very small two dimensional data set. I wanted to see how well t-SNE can separate these out. Again, perplexity equal to 30, probably looks the best to me. --- class: center, middle, spacious # Play around online http://distill.pub/2016/misread-tsne/ ??? There's a really cool article in this link. The question was how do we reconcile categorical data with this? So this indeed, this seems to be continuous data. You can apply it after one hot encoding. Sometimes the results will look strange. You might probably be able to come up with something that more specifically uses the discrete distributions. But all the things I talked about are really for continuous data. Is s-SNE more computationally expensive than PCA? Yes, by a lot. PCA is computing an SPD, which is like a very centered linear algebra thing, which is very fast. And a lot of people spent like 50 years optimizing it. Still, there's a bunch of things to speed t-SNE. --- # UMAP https://github.com/lmcinnes/umap .smaller[ - Construct graph from simplices, use graph layout algorithm - Much faster than t-SNE: MNIST takes 2 minutes vs 45 minutes for t-SNE]   --- # LargeVis https://github.com/elbamos/largeVis .smaller[ - Use nearest neighbor graph constructed very efficiently (and approximately) - Much faster than t-SNE ]   --- class: center, middle # Questions ?
