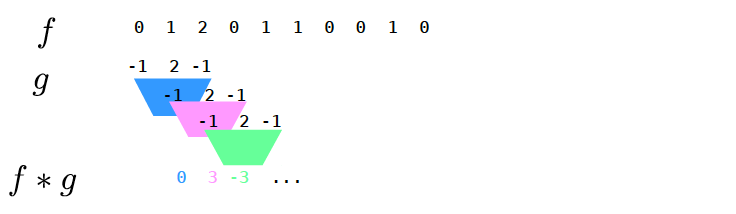

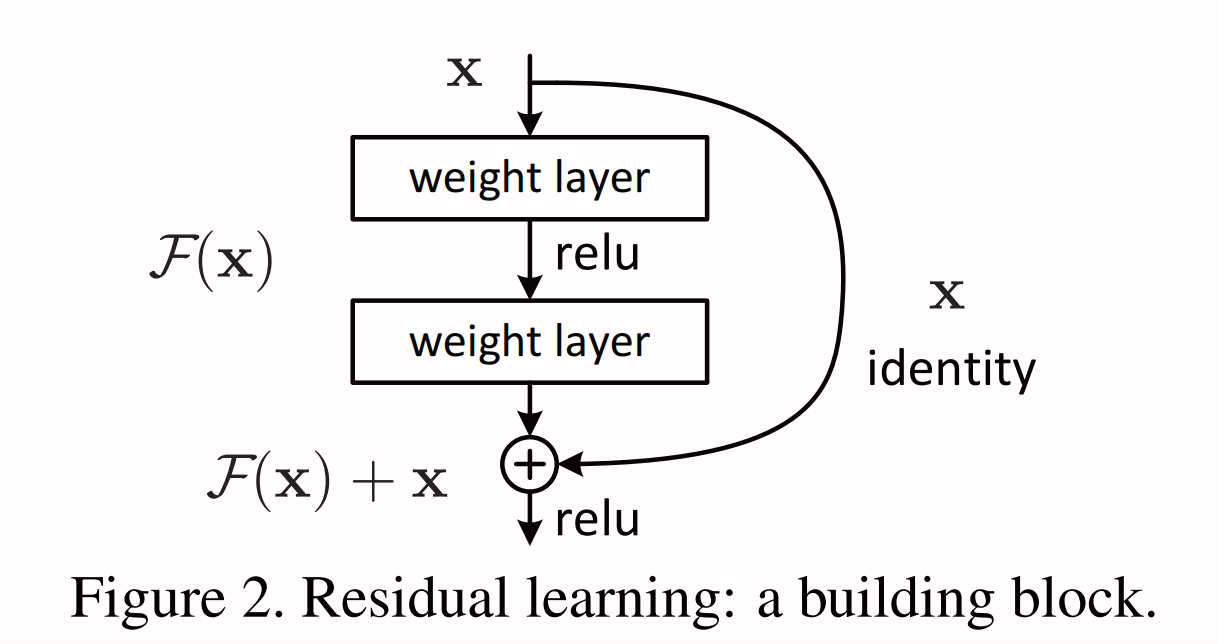

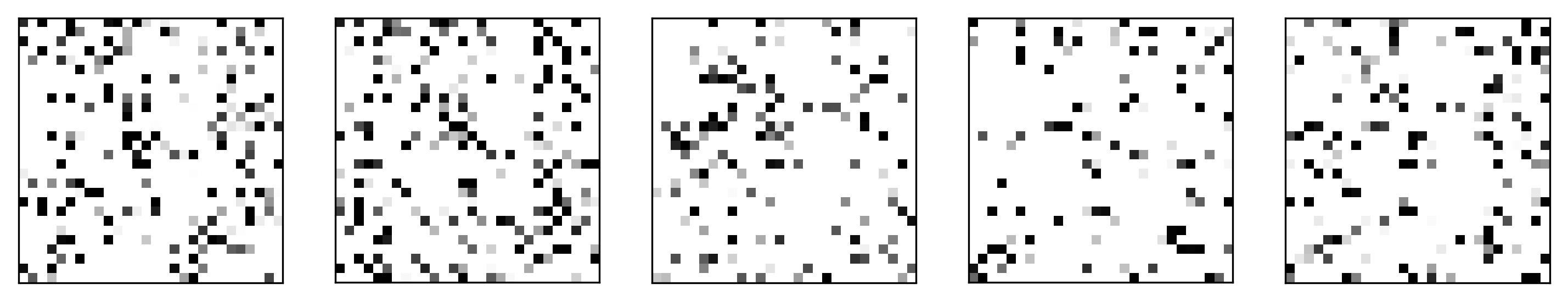

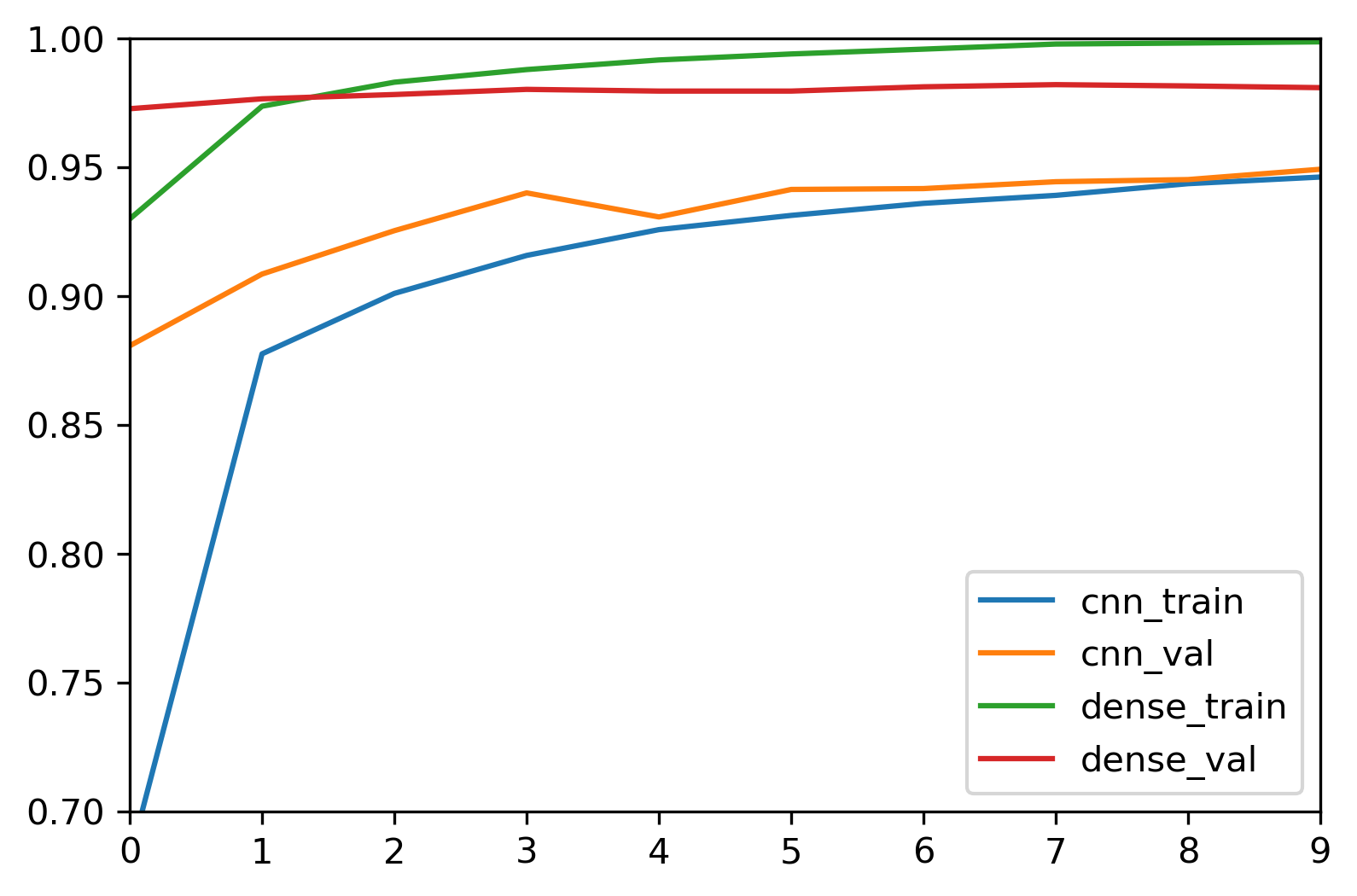

class: center, middle ### W4995 Applied Machine Learning # Advanced Neural Networks 04/22/19 Andreas C. Müller ??? drive home point about permuting pixels in imaged doesn't affect dense networks (or RF, or SVM) FIXME update with state-of-the-art instead of VGG16 FIXME data augmentation before dropout! FIXME show how permuting pixels doesn't affect fully connected network, but does affect convolutional network FIXME my resnet is broken FIXME add finetuning with keras example FIXME write down why residual is called residual? g(x) = f(x) + x ? --- #Definition of Convolution `$$ (f*g)[n] = \sum\limits_{m=-\infty}^\infty f[m]g[n-m] $$` `$$ = \sum\limits_{m=-\infty}^\infty f[n-m]g[m] $$` .center[  ] ??? The definition is symmetric in f, but usually one is the input signal, say f, and g is a fixed “filter” that is applied to it. You can imagine the convolution as g sliding over f. If the support of g is smaller than the support of f (it’s a shorter non-zero sequence) then you can think of it as each entry in f * g depending on all entries of g multiplied with a local window in f. Not that the output is shorter than the input by half the size of g. this is called a valid convolution. We could also extend f with zeros, and get a result that is larger than f by half the size of g, that’s called a full convolution. We can also just pad a little bit and get something that is of the same size as f. Also not that the filter g is flipped as it’s indexed with -m It’s easier to think about this in a signal processing context, where we have some signal, and you have a filter that you want to apply to the signal. --- #Convolution Neural Networks .center[  ] - Y. LeCun, L. Bottou, Y. Bengio, and P. Haffner: Gradient-based learning applied to document recognition ??? Here is the architecture of an early convolutional net form 1998. The basic architecture in current networks is still the same. You can multiple layers of convolutions and resampling operations. You start convolving the image, which extracts local features. Each convolutions creates new “feature maps” that serve as input to later convolutions. To allow more global operations, after the convolutions the image resolution is changed. Back then it was subsampling, today it is max-pooling. So you end up with more and more feature maps with lower and lower resolution. At the end, you have some fully connected layers to do the classificattion. --- class: middle # Convnets vs Fully Connected Nets Illustrated --- # MNIST and Permuted MNIST  .smallest[ ```python rng = np.random.RandomState(42) perm = rng.permutation(784) X_train_perm = X_train.reshape(-1, 784)[:, perm].reshape(-1, 28, 28) X_test_perm = X_test.reshape(-1, 784)[:, perm].reshape(-1, 28, 28) ``` ]  --- # Fully Connected vs Convolutional .tiny[ .left-column[ ```python model = Sequential([ Dense(512, input_shape=(784,), activation='relu'), Dense(10, activation='softmax'), ]) model.compile("adam", "categorical_crossentropy", metrics=['accuracy']) ``` ``` _____________________________________________________ Layer (type) Output Shape Param # ===================================================== dense_7 (Dense) (None, 512) 401920 _____________________________________________________ dense_8 (Dense) (None, 10) 5130 ===================================================== Total params: 407,050 Trainable params: 407,050 _____________________________________________________ ``` ] ] -- .tiny[ .right-column[ ```python num_classes = 10 cnn = Sequential() cnn.add(Conv2D(32, kernel_size=(3, 3), activation='relu', input_shape=input_shape)) cnn.add(MaxPooling2D(pool_size=(2, 2))) cnn.add(Conv2D(32, (3, 3), activation='relu')) cnn.add(MaxPooling2D(pool_size=(2, 2))) cnn.add(Flatten()) cnn.add(Dense(64, activation='relu')) cnn.add(Dense(num_classes, activation='softmax')) ``` ``` _________________________________________________________________ Layer (type) Output Shape Param # ================================================================= conv2d_1 (Conv2D) (None, 26, 26, 32) 320 _________________________________________________________________ max_pooling2d_1 (MaxPooling2 (None, 13, 13, 32) 0 _________________________________________________________________ conv2d_2 (Conv2D) (None, 11, 11, 32) 9248 _________________________________________________________________ max_pooling2d_2 (MaxPooling2 (None, 5, 5, 32) 0 _________________________________________________________________ flatten_1 (Flatten) (None, 800) 0 _________________________________________________________________ dense_9 (Dense) (None, 64) 51264 _________________________________________________________________ dense_10 (Dense) (None, 10) 650 ================================================================= Total params: 61,482 Trainable params: 61,482 _________________________________________________________________ ``` ] ] --- # Training curves .left-column[ ## Original Data  ] -- .right-column[ ## Shuffled Data  ] --- class: middle # Residual Neural Networks --- # Problem  ??? We can't fit deep networks well - not even on training set! "vanishing gradient problem" - was motivation for relu, but not solved yet. The deeper the network gets, usually the performance gets better. But if you make your network too deep, then you can't learn it anymore. This is on CIFAR-10, which is a relatively small dataset. But if you try to learn a 56-layer convolutional, you cannot even optimize it on the training set. So basically, it's not that we can't generalize, we can't optimize. So these are universal approximators, so ideally, we should be able to overfit completely the training set. But here, if we make it too deep, we cannot overfit the training set anymore. It's kind of a bad thing. Because we can’t really optimize the problem. So this is sort of connected to this problem of vanishing gradient that it's very hard to backpropagate the error through a very deep net because basically, the idea is that the further you get from the output, the gradients become less and less informative. We talked about RELU units, which sort of helped to make this a little bit better. Without RELU units, you had like 4 or 5 layers, with RELU units, you have like 20 layers. But if you do 56 layers, it's not going to work anymore. Even it's not going to work anymore, even on the training set. So this has been like a big problem. And it has a surprisingly simple solution, which is the RES-NET layer. --- class: center # Solution  `$$y = F(x, \{W_i\}) + x \quad \text{ for same size layers}$$` -- `$$y = F(x, \{W_i\}) + W_sx \quad \text{ for different size layers}$$` ??? instead of learning a function. learn the difference to identity. if sizes different, add linear projection. Here's how the residual layer looks like. And the idea is, let's say you have a bunch of weight layers, instead of learning a function, we learn how the function is different from the identity. So you're not trying to model the whole relationship between x and y, you want to model how is y different from x. In practice, what happens is you have multiple weight layers, usually like 2, and you have skip connection that gives the identity from before these layers to after these layers. So basically, if you set these weights all to zero, you have a pass-through layer. And this allows information to be back-propagated much more easily because you have all these identity matrices, so something always gets backpropagated. So this obviously only works if y and x have the same shape. So in CNNs, often the convolutional layers have sort of the same shape. But then you also have max-pooling layers. And so what you can do is, instead of having the identity, you use a linear transformation. And this way, the gradients can propagate better. So just seems like a very simple idea but people have tried it before and it really made a big difference. --- class: center, middle  ??? dotted lines are linear projection, others are identity. MTG19, which a state of the art neural network before and these are all the layers. Next to it is a 34 layered, convolutional neural network. And then is the residual network. For each pair of two layers, you add in a skip connection. This black arrow is just an identity mapping because things are the same size. If there's pooling, there's this dashed arrow, which is a linear transformation. But basically, they're sort of a pathway that allows you to project the identity from the very beginning to the very end. Or from the output signal you get back towards the beginning. --- class: center, middle  ??? Here’s the result. The solid line is the training error and the bold line is the test error. The lines are depicted over the number of iterations. So what you can see here is the 18 layers works well than the 34 layers. And the training set is worse than the test set everywhere. But with the 34 layers, even the training set can’t beat the test set of the 18 layers. The next one is exactly the same architecture, but we put in all these identity matrices. And now we can see that the 18 layer is pretty unchanged. But the 34 layer is now actually better than the 18 layers. And in particular, we can overfit the dataset a little bit. This is a much better result than before. And when you publish this, this was state of the art and quite a big jump. --- class: center  -- This was Dec 2015. Current SOTA: 15.7% top-1 error https://paperswithcode.com/sota/image-classification-on-imagenet ??? uses batch normalization and dropout. 152 layers is a whole lot of layers. ResNet is by Microsoft. So after this came out, people in Google stole the ResNet trick from Microsoft and then they got better. So residual networks become widely used after they published this. --- # ResNets in Keras .smallest[ Requires functinal API: https://keras.io/getting-started/functional-api-guide/ ```python from keras.layers import Input, Dense from keras.models import Model # This returns a tensor inputs = Input(shape=(784,)) # a layer instance is callable on a tensor, and returns a tensor x = Dense(64, activation='relu')(inputs) x = Dense(64, activation='relu')(x) predictions = Dense(10, activation='softmax')(x) # This creates a model that includes # the Input layer and three Dense layers model = Model(inputs=inputs, outputs=predictions) model.compile(optimizer='adam', loss='categorical_crossentropy', metrics=['accuracy']) model.fit(data, labels) # starts training ``` ] --- # CNN with Functional API .tiny[ .left-column[ ```python from keras.layers import Input, Conv2D, MaxPooling2D, Flatten from keras.models import Model num_classes = 10 inputs = Input(shape=(28, 28, 1)) conv1_1 = Conv2D(32, (3, 3), activation='relu', padding='same')(inputs) conv1_2 = Conv2D(32, (3, 3), activation='relu', padding='same')(conv1_1) maxpool1 = MaxPooling2D(pool_size=(2, 2))(conv1_2) conv2_1 = Conv2D(32, (3, 3), activation='relu', padding='same')(maxpool1) conv2_2 = Conv2D(32, (3, 3), activation='relu', padding='same')(conv2_1) maxpool2 = MaxPooling2D(pool_size=(2, 2))(conv2_2) flat = Flatten()(maxpool2) dense = Dense(64, activation='relu')(flat) predictions = Dense(num_classes, activation='softmax')(dense) model = Model(inputs=inputs, outputs=predictions) ``` ] .right-column[ ``` _________________________________________________________________ Layer (type) Output Shape Param # ================================================================= input_3 (InputLayer) (None, 28, 28, 1) 0 _________________________________________________________________ conv2d_9 (Conv2D) (None, 28, 28, 32) 320 _________________________________________________________________ conv2d_10 (Conv2D) (None, 28, 28, 32) 9248 _________________________________________________________________ max_pooling2d_5 (MaxPooling2 (None, 14, 14, 32) 0 _________________________________________________________________ conv2d_11 (Conv2D) (None, 14, 14, 32) 9248 _________________________________________________________________ conv2d_12 (Conv2D) (None, 14, 14, 32) 9248 _________________________________________________________________ max_pooling2d_6 (MaxPooling2 (None, 7, 7, 32) 0 _________________________________________________________________ flatten_3 (Flatten) (None, 1568) 0 _________________________________________________________________ dense_13 (Dense) (None, 64) 100416 _________________________________________________________________ dense_14 (Dense) (None, 10) 650 ================================================================= Total params: 129,130 Trainable params: 129,130 Non-trainable params: 0 _________________________________________________________________ ``` ] ] --- # Adding Skip connections .tiny[ .left-column[ ```python from keras.layers import Input, Conv2D, MaxPooling2D, Flatten from keras.models import Model num_classes = 10 inputs = Input(shape=(28, 28, 1)) conv1_1 = Conv2D(32, (3, 3), activation='relu', padding='same')(inputs) conv1_2 = Conv2D(32, (3, 3), activation='relu', padding='same')(conv1_1) maxpool1 = MaxPooling2D(pool_size=(2, 2))(conv1_2) conv2_1 = Conv2D(32, (3, 3), activation='relu', padding='same')(maxpool1) conv2_2 = Conv2D(32, (3, 3), activation='relu', padding='same')(conv2_1) # Actually doesn't work, this net is too small skip2 = add([maxpool1, conv2_2]) maxpool2 = MaxPooling2D(pool_size=(2, 2))(skip2) flat = Flatten()(maxpool2) dense = Dense(64, activation='relu')(flat) predictions = Dense(num_classes, activation='softmax')(dense) model = Model(inputs=inputs, outputs=predictions) ``` ] .right-column[ ``` __________________________________________________________________________________________________ Layer (type) Output Shape Param # Connected to ================================================================================================== input_14 (InputLayer) (None, 28, 28, 1) 0 __________________________________________________________________________________________________ conv2d_57 (Conv2D) (None, 28, 28, 32) 320 input_14[0][0] __________________________________________________________________________________________________ conv2d_58 (Conv2D) (None, 28, 28, 32) 9248 conv2d_57[0][0] __________________________________________________________________________________________________ max_pooling2d_23 (MaxPooling2D) (None, 14, 14, 32) 0 conv2d_58[0][0] __________________________________________________________________________________________________ conv2d_59 (Conv2D) (None, 14, 14, 32) 9248 max_pooling2d_23[0][0] __________________________________________________________________________________________________ conv2d_60 (Conv2D) (None, 14, 14, 32) 9248 conv2d_59[0][0] __________________________________________________________________________________________________ add_11 (Add) (None, 14, 14, 32) 0 max_pooling2d_23[0][0] conv2d_60[0][0] __________________________________________________________________________________________________ max_pooling2d_24 (MaxPooling2D) (None, 7, 7, 32) 0 add_11[0][0] __________________________________________________________________________________________________ flatten_14 (Flatten) (None, 1568) 0 max_pooling2d_24[0][0] __________________________________________________________________________________________________ dense_35 (Dense) (None, 64) 100416 flatten_14[0][0] __________________________________________________________________________________________________ dense_36 (Dense) (None, 10) 650 dense_35[0][0] ================================================================================================== Total params: 129,130 Trainable params: 129,130 Non-trainable params: 0 __________________________________________________________________________________________________ ``` ] ] --- class: middle, center # Densely Connected Convolutional Networks (DenseNet) [Huang et. al - Densely Connected Convolutional Networks (2016)](https://arxiv.org/pdf/1608.06993) ??? DenseNet tries to solve a similar problem in trying to learn deeper networks. But the approach they take is somewhat different. --- class: center  ??? Previously we had each layer connected to the layer before it. In DenseNet, each layer is connected to all the layers before it. This allows the last layer to be connected to the input and the output in a more direct way. The hope is that you can learn more easily. But since these are all convolutions, this only works if they have the same size. --  ??? So basically, they added dense blocks into the convolutional network. And then between the dense blocks is convolutional pooling to basically reduce the dimension. The connections between the convolutional layers are not just only the next one but all other convolutional layers. --- class: center, middle  ??? uses batch normalization and dropout. These networks get even better than ResNet. If you make the network bigger and bigger, error drops down. But DenseNet gets the same accuracy with three times fewer parameters. And if you add parameters or layers, it gets even better. One of the reasons why you might be interested in parameters is because you need to store them, which means you need bigger GPUs. And if you want to do prediction, it takes longer, because you need to compute more. So they also showed a graph of computation, and DenseNet basically computes quite a bit faster than ResNet. If you're interested in this kind of architectures, you should also look up Inception. --- class: center, middle  https://keras.io/applications/ ??? Here are all the things that are inside Keras. Inception is created by Google by copying from Microsoft. These are pretty well-performing models but this list changes daily. --- class: middle # Transfer learning --- class: center # Transfer Learning .center[  ] .smaller[See http://cs231n.github.io/transfer-learning/] ??? - Train on “large enough” data. - Apply to new “small” dataset. - Take activations of last or second to last fully connected layer. Often we have a small but specific image dataset for a particular application. Training a neural net is not feasible unless we have tens of thousands or hundreds of thousands of images. However, if we have a convolutional neural net that was already trained on a large dataset that is similar enough, we can hope that the features it learned are also helpful for our task. The easiest way to adapt a trained network to a new task is to just apply it to our dataset and take the activations of the second to last or last layer. If the original task was rich enough – say 10000 different classes as in imagenet – these layers contain a lot of information about the image. We can then use these activations as features for another classifier like a linear model or smaller dense neural network. The main point is that we don’t need to retrain all the weights in the network. You can think of it as retraining only the last layer – the classification layer – of the network, while holding all the convolutional filters fixed. If they learned generic patterns like edges and patterns, these will still be useful for your task. You can download pre-trained neural networks for many architectures online. Using a pre-trained network is sometimes also known as transfer learning. This potentially doesn’t work with images from a very different domain, like medical images. What you do in transfer learning is you basically get rid of the last layer, you look at the second to last layer and you just use the representation in this layer as a feature representation. So this is basically a way to embed the image into vector space, similar to what word2vec did, only now we're embedding this whole image into space, and we get 4069-dimensional representation. People have tried to use neural networks for feature learning for many years, but it never really worked really well. What made this work really well in practice is, this is basically a supervised task, so this whole thing is learned to do this classification in these 1000 classes. So this is a very specific task to optimize, the model tries to be discriminative with respect to these classes. But on the other hand, these 1000 classes spend a whole variety of natural images, a whole variety of different kinds of objects, and scenes, and everything so that to actually perform well on this task, you need a representation of the world that is somewhat generic. So the hope is that these 4000-dimensional feature vector doesn't encode only information about the 1000 classes that we are actually interested in here but more general information about the image. Last time, I showed you neurals that reactive to faces, clothing, there are no categories like faces or clothing in the dataset but still, there are some filters that respond to that. This has been very successful. The reason why we want to do this is it's very hard to train CNNs, and you need a lot of data. So if you have a specific image recognition task, it's very likely that the things you're interested in are not one of the 1000 classes, because you have mostly different breeds of dogs. But you probably also don't have a million training images to actually train an architecture like this yourself. And you really need a lot of training data to make this work. So here, what we're doing is we will use this network learned on this very large, very generic database to learn representation. And then we can use as a representation for different tasks. And this is what you're supposed to do in the last task in the homework. --- class: spacious # Ball snake vs Carpet Python .center[  ] ??? I want to now classify ball snakes and carpet pythons. --- .smaller[ ```python import flickrapi import json flickr = flickrapi.FlickrAPI(api_key, api_secret, format='json') json.loads(flickr.photos.licenses.getInfo().decode("utf-8")) def get_url(photo_id="33510015330"): response = flickr.photos.getsizes(photo_id=photo_id) sizes = json.loads(response.decode('utf-8'))['sizes']['size'] for size in sizes: if size['label'] == "Small": return size['source'] get_url() ids = search_ids("ball snake", per_page=100) urls_ball = [get_url(photo_id=i) for i in ids] from urllib.request import urlretrieve import os for url in urls_carpet: urlretrieve(url, os.path.join("snakes", "carpet", os.path.basename(url))) ```] ??? --- .center[  ] ??? I get 100 carpet snake pictures and 100 ball snake pictures from Flickr. This would be way too small of a training dataset to train a convolutional neural network. If we extract features using an existing convolutional neural network, we can learn something like a linear classifier on top of these representations. There is noise in the dataset and similar looking things. --- # Extracting Features using VGG .smaller[ ```python from keras.preprocessing import image X = np.array([image.img_to_array(img) for img in images_carpet + images_ball]) # load VGG16 model = applications.VGG16(include_top=False, weights='imagenet') # preprocessing for VGG16 from keras.applications.vgg16 import preprocess_input X_pre = preprocess_input(X) features = model.predict(X_pre) print(X.shape) print(features.shape) features_ = features.reshape(200, -1) ``` ``` (200, 224, 224, 3) (200, 7, 7, 512) ```] ??? VGG16 like each convnet has particular input requirements, for example 224x224 images. Include top=false means I don’t want the last layer which does the 1000 class classification. I need to load the images and convert them into an array in the shape that keras wants it. So you need to make sure that the input has the right representation. You need to also make sure that it's preprocessed in the same way as all the images that VGG16 was trained with. VGG16 was trained in a particular way that image net was cropped. These were 224x224 images, so you need to make sure that whatever you input into your model is 224x224. And the way you bring it to this should probably be the same way it was done for the whole training set. So here for each of the applications, there's also a preprocess input, which basically does exactly the same preprocessing as what was done for the training of the network. And this is really important. Model.predict will take a while for a big dataset because you need to run through these whole neural networks. X_pre is after the preprocessing, I have 100 images of snakes of each kind, it's 224x224x3 and this the right input for the model. And then after I call predict, after all these convolutional layers, I get 7x7 feature map, and there's 512 of them. You could probably also do more smarter things, you could look at the output of multiple layers, like the last layer, the second to last layer, or something like that, I just used the last layer and just flatten everything to get out of it. So here's there’s a little bit of input structure left so still a 7x7 image, but I just ignored the image structure. --- # Classification with LogReg .smaller[ ```python from sklearn.linear_model import LogisticRegressionCV lr = LogisticRegressionCV().fit(X_train, y_train) print(lr.score(X_train, y_train)) print(lr.score(X_test, y_test)) from sklearn.metrics import confusion_matrix confusion_matrix(y_test, lr.predict(X_test)) ``` ``` 1.0 0.82 array([[24, 1], [ 8, 17]]) ```] ??? On the training set, I get 100% accuracy and on the test set, I get 82% accuracy. It's a balanced dataset, so the chance is 50%. If I did any classification directly on the image, it would be impossible basically. These images are so high dimensional and so varied, that it will be impossible to learn classifier on these images directly. If you look at this image, it's 224x224x3 which means it's like about 100,000, if you think of it as a feature vector. So you would have 100,000 features and 200 examples and training a linear model on this, in particular given how the data is represented is basically hopeless. But using this pre-trained convolutional neural network, we can actually do something quite successful here on this tiny dataset. And this is how convolutional networks are very commonly used in practice. Just select a relatively small dataset that is specific to your domain and you use a pre-trained neural network as a feature extraction mechanism. --- #Finetuning .center[  ] ??? - Start with pre-trained net - Back-propagate error through all layers - “tune” filters to new data. A more complicated variant of this is to load a network trained on some other dataset, and replace the last layer with your classification task. Instead of training only the last layer, we can also keep training all the previous layers, backpropagating the gradient through the network and adjusting the previously learned filters for our task. You can think of this as warm-starting a neural network from one that was trained on another dataset. If you do that, we often want to train the last layer a little bit before we backpropagate through the network. Otherwise the random initialization of the last layer might destroy the filters that we used for initialization. Another option is, instead of just taking the output representation by the network, we can do fine tuning. In fine-tuning, you keep the network but you don't only use it for feature extraction, you basically use the weights learned on the different dataset as initialization. You learn all the weights, you throw away the last layer, because that was specific to the classification task you had. And now you learn like a linear classifier on top, but you not only learn the weight of the linear classifier in the back, you also backpropagate the error through the whole network. Usually, you want to do like a little bit of a burn at the beginning where you tune just the last layer, but then you basically keep learning the whole network, it's probably not going to change the filters too much but it's going to adjust the network to your specific task. But it's much, much easier than trying to learn from scratch. The problem with is that if you have too little data, you can overfit your data very easily. Neural networks have very many parameters so if you try to train them or even fine tune them on a very small dataset, then you're just going to overfit. So depending on dataset size and how similar to image net may be, either fine-tuning or just extracting the last layer might be the best way to go forward. You should really think about convolutional neural networks as doing something fundamentally different than fully connected networks or any other classifier because they use the 2d structure of the input. If you think of the MNest digits, if you shuffled all the pixels in the same way for all of the images, any classifier that we looked at so far, will have exactly the same result. The ordering of the pixels is completely ignored by fully connected neural networks, random forest, SVM, and linear model. If you shuffled all the pixels in the same way for all images, it would look like complete garbage and it would be impossible for a human to actually classify them. The machine learning algorithms do exactly the same thing if they’re not shuffled. They completely ignore all the neighborhood structure and they’re similarly accurate. On convolutional neural networks, it really makes use of this neighborhood structure of the networks. So if we shuffled all the pixels, the convolutional network will completely fail because the neighboring pixels don't have anything to do with each other anymore and the convolutional network could not learn anything. So this is sort of a crucial difference between how the convolutional networks work versus how any of the other classifiers work. They really make use of the topology of the input space to this structure. And if you didn't do that, so for MNest you could do something even if you ignore the pixels structure, you will not get anything. So it's really important to use something that's aware of the image structure. --- class: center, middle # Recurrent Neural Networks ??? Recurrent networks are usually used for time series, or generally for sequential data. --- class: center, middle  .smallest[ Images from http://colah.github.io/posts/2015-08-Understanding-LSTMs/ ] ??? In RNN, we have an input, hidden layer and an output. Basically, the hidden layer is connected to itself. So at the first time step, you get some input here, compute the hidden layer, and get some output. At the second time step, you get some input again and compute some output, but you can also look back to the last hidden layer state. But the weights are all shared. So the matrix, U, V, and W are constant all the time. This is done if you have a time series or any series that you want to tag everything in the series. So for example, in NLP people like to know is something a noun or a verb. So if you feed in a sentence, then for each word it would say what kind of word it is, as a part of speech tagging. Or if you want to make a prediction over time, if you have an input signal that evolves over time, and you want to predict an output signal, then you could also use that. Here basically, this works if you have two parallel sequences and if you want an output for each element in the input sequence. The problem is that if you have long term dependencies, this doesn't work very well. If the output here depends on the input way back then the network will have forgotten about this. Because you always have the same weight matrix V and it just propagates information forward and forward. It's very hard for a network to remember things that happened previously. So as to overcome this problem, people started using LSTMs. --- class: center, middle  .smallest[[Hochreiter, Schmidhuber - Long Short-Term Memory (1997)](http://www.bioinf.jku.at/publications/older/2604.pdf)] ??? Which stands for long short term memory. This is from 1997. It was ignored for 10 years. But now it's all the rage. The idea is that now the hidden layer looks like this. The idea is that you have multiple parts of this hidden layer, which influence how you use the last state, how you use the input, and how you're going to propagate it forward. Here at the current time step, there's weight matrix Ft, this is a multiplicative influence on the last Ct, which is sort of one part of the memory. There's two parts of the memory, Ct and Ht. Lt is how much the current activation influence Ct. TanH is a layer that's the new activation of Ct. The final output gate that says how much should Ct influence the output in H. So basically, Ct is sort of a control stream, and Ht is the activations. So instead of having one hidden layer, you have the hidden layers made out of some memory, some forget, some waiting and some gating. So each layer would be replaced by one of these. --- class: center, middle  .smallest[[Cho et. al. - Learning Phrase Representations using RNN Encoder-Decoder for Statistical Machine Translation(2014)](https://arxiv.org/pdf/1406.1078)] ??? Since they're so complicated, a friend of mine came up with this thing called the GRU which is simpler. Here, you only have a single string of hidden data, and you have something like a forget gate. The idea between these forget gates is you want to be able to propagate error more easily and they are something similar to shortcut connections over time. Basically, if there's no influence coming from Xt on σ and σ channel, then the information just flows through directly. And this basically is similar to the shortcut units in the RES-NET only like 20 years earlier. So here the idea is to allow backpropagation through more time by having some quite intricate structure. This a little bit faster and a little bit easier to understand. --- class: center, middle  ??? But I think most people are using the LSTM these days. Each hidden layers basically replaced by one of these. So here, for each time step, you put in the LSTM layer that has these two streams of data coming from the last LSTM layer, and you produce an output. This is a state of the art for doing things like parts of speech tagging, or just predicting on time series or predicting on any kinds of series. This is pretty easy to do with keras or any other deep learning toolbox. Unfortunately, not that many problems have this form. Often you want to have interactions between sequences where they don't have the same length, for example, text. Also, they might have long term dependencies. So for example, if you want to translate German to English, the word that you say at the end, might depend on the word that was said in the beginning, and the other way around. So if I tried to do something like this, the output here might actually depend on the input later, in a sentence and so you can do it with this architecture. Also, they will have different lengths, everything is longer in German. --- class: center, middle  .smallest[[Sutskever et. al. - Sequence to Sequence Learning with Neural Networks (2014)](https://arxiv.org/pdf/1409.3215.pdf)] ??? Here, you have an input sequence, A, B, C, and you want to predict the sequence W, X, Y, Z. And so what you do is you start reading the input sequence token by token or word by word, in this example, you start reading A, B, and C and read the end of sentence. Once the model reads end of sentence, you start trying to predict. And then you predict, predict, predict until the model predicts end of sentence. For each new prediction step, you also feed in what was the output of the last step. And then again, you train this thing with backpropagation. It's called back progression through time, because you need to backpropagate along this whole sequence. The surprising thing about this is this actually works. --- class: center # Machine Translation  ??? This is how it looks in practice. This an example of machine translation taken from TensorFlow tutorial. This model is just trained doing backpropagation. And it learns to translate languages properly. This is how Google Translate works. The structure of the two sentences is quite similar. But these sentences are not aligned in any way. You just have an input sequence and an output sequence. It works for any 2 sequences basically. This is called sequence to sequence learning. With this architecture, you can learn to predict any arbitrary sequences. --- class: center # Question answering  .smallest[[Chen et. al. - Reading Wikipedia to Answer Open-Domain Questions](https://arxiv.org/pdf/1704.00051v2.pdf) https://rajpurkar.github.io/SQuAD-explorer/] ??? These are actually training examples. There are datasets of questions and answers. The model is supposed to learn these using a context paragraph. Making this actually work is more than just doing a sequence to sequence but the main architecture, the main component, is a sequence to sequence. So here, it tries to predict from the question the answer using some context. This is actually from a training set but the model actually performs reasonably well on this. Of course, these networks need a lot of data to train, they take very long to train and you need to fiddle around with it a lot, you need to do things like batch normalization drop-out and so on and you need these weird LSTM layers. But there's a whole lot of research happening in this kind of space. People have been using recurrent neural networks also to learn word representations that are sort of more powerful than word2vec. --- # Adverserial Samples .center[  ] .smallest[ <br /> [Szegedy et. al.: Intriguing properties of neural networks](https://arxiv.org/abs/1312.6199) ] ??? Since convolutional neural nets are so good at image recognition, some people think they are pretty infallible. But they are not. There is this interesting paper about intriguing properties of neural networks, that introduces adverserial samples. Adverserial samples are samples that were created by an adversary or attacker to fool your model. Here, they changed images to be classified as Ostrich by AlexNet trained on imagenet. The picture on the left is change just slightly, and went from correctly classified to classified as Ostrich. This technique uses gradient descent on the input and requires access to all the weights in the network to create the samples. Given how high-dimensional the input space is, this is not very surprising from a mathematical perspective, but it might be somewhat unexpected. requires the weights, done by gradient descent. FIXME where should this go? --- class: middle # Questions ?
