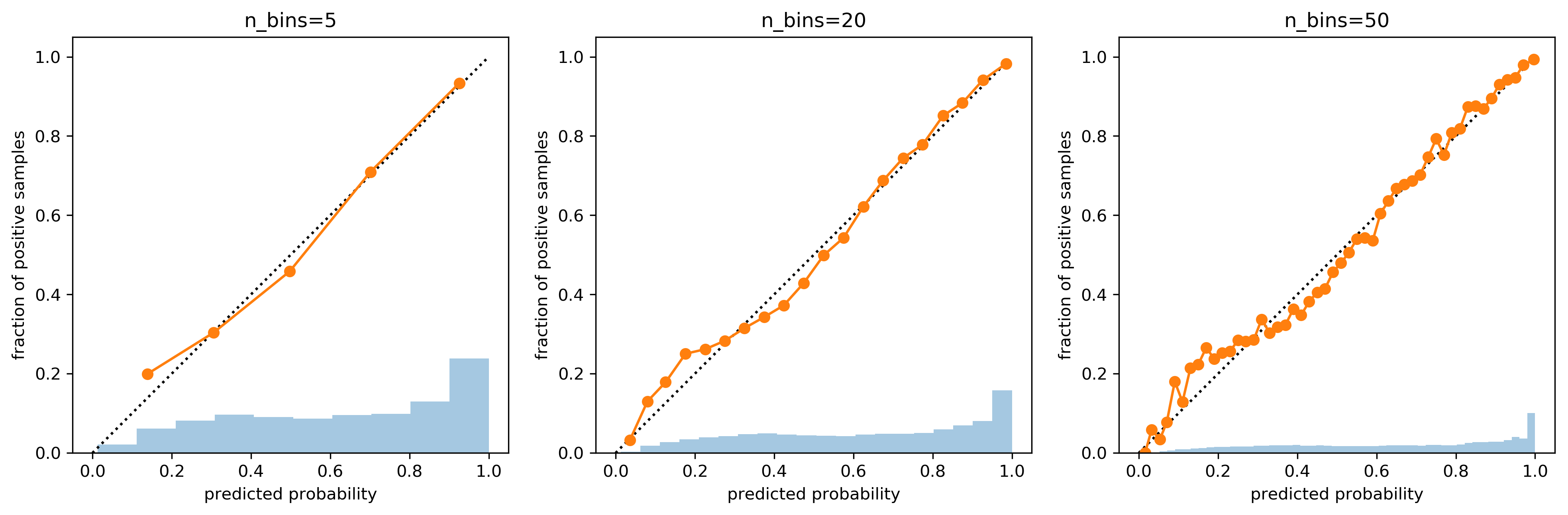

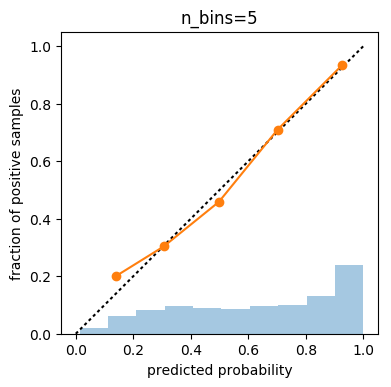

class: center, middle ### W4995 Applied Machine Learning # Calibration, Imbalanced Data 03/02/20 Andreas C. Müller ??? Today we'll expand on the model evaluation topic we started last week, and we'll talk more on how we can build better models for imbalanced data Today we’ll talk about working with imbalanced data. We already talked about how accuracy is a bad measure and what are the other measures we can use. FIXME in calibration: make sure we have p(y=1) not p(y)? FIXME what are the bins for calibration in first slide FIXME write down definition for calibration FIXME alpha value for curves FIXME definition of balanced class weight FIXME bullet points!! FIXME balanced bagging is terrible now? FIXME add more datasets for some benchmark? FIXME: add example of calibrated and inaccurate vs accurate but not calibrated! (always saying 50% is calibrated) FIXME: brier score decomposition FIXME calibration scores FIXME maybe saying "sort" before binning is confusing? FIXME maybe add why I don't like log loss here? FIXME show that AUC is not changed by calibration? FIXME show example of overconfident vs underconfident predictions more clearly FIXME update metrics slides from metrics lecture FIXME better illustration for sampling FIXME better motivation for sampling / why we want to change things FIXME Add estimators minimizing loss directly? FIXME add more on imbalanced forest FIXME better benchmarking for SMOTE FIXME show grid-search results FIXME grid-search SMOTE show uncertainty FIXME research comparison papers more FIXME smote: clarify to only sample from same class FIXME smote: paper vs implementation: do along coordinates in rectangle? --- class:spacious #Calibration .center[
Source

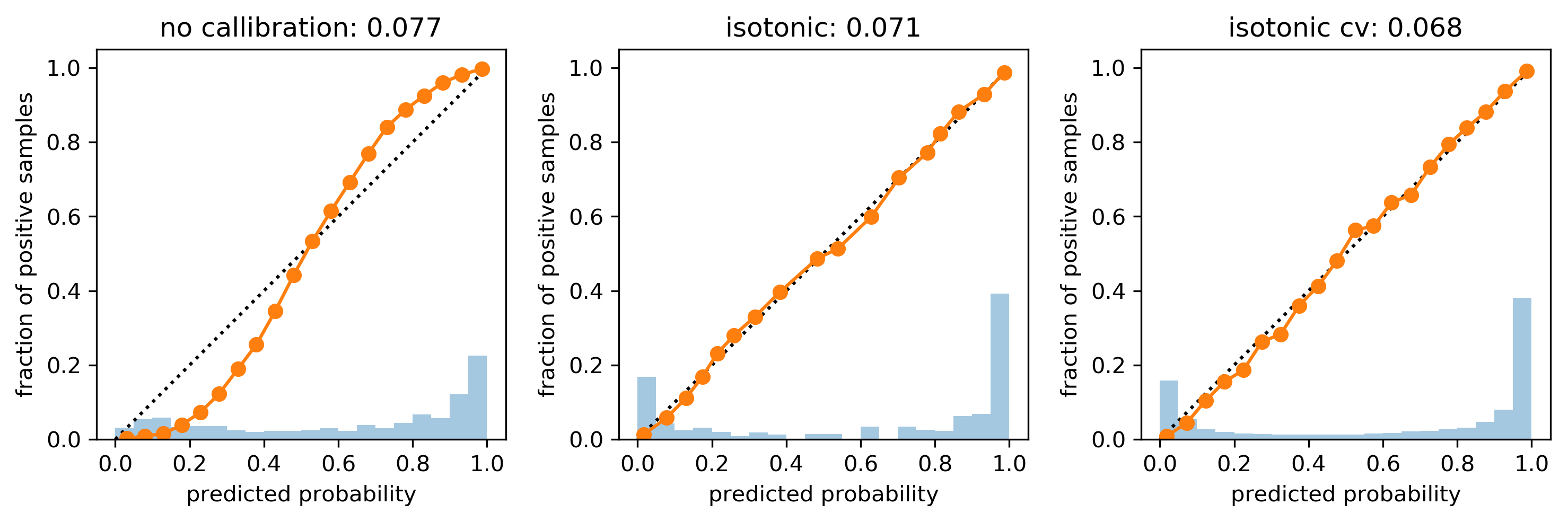

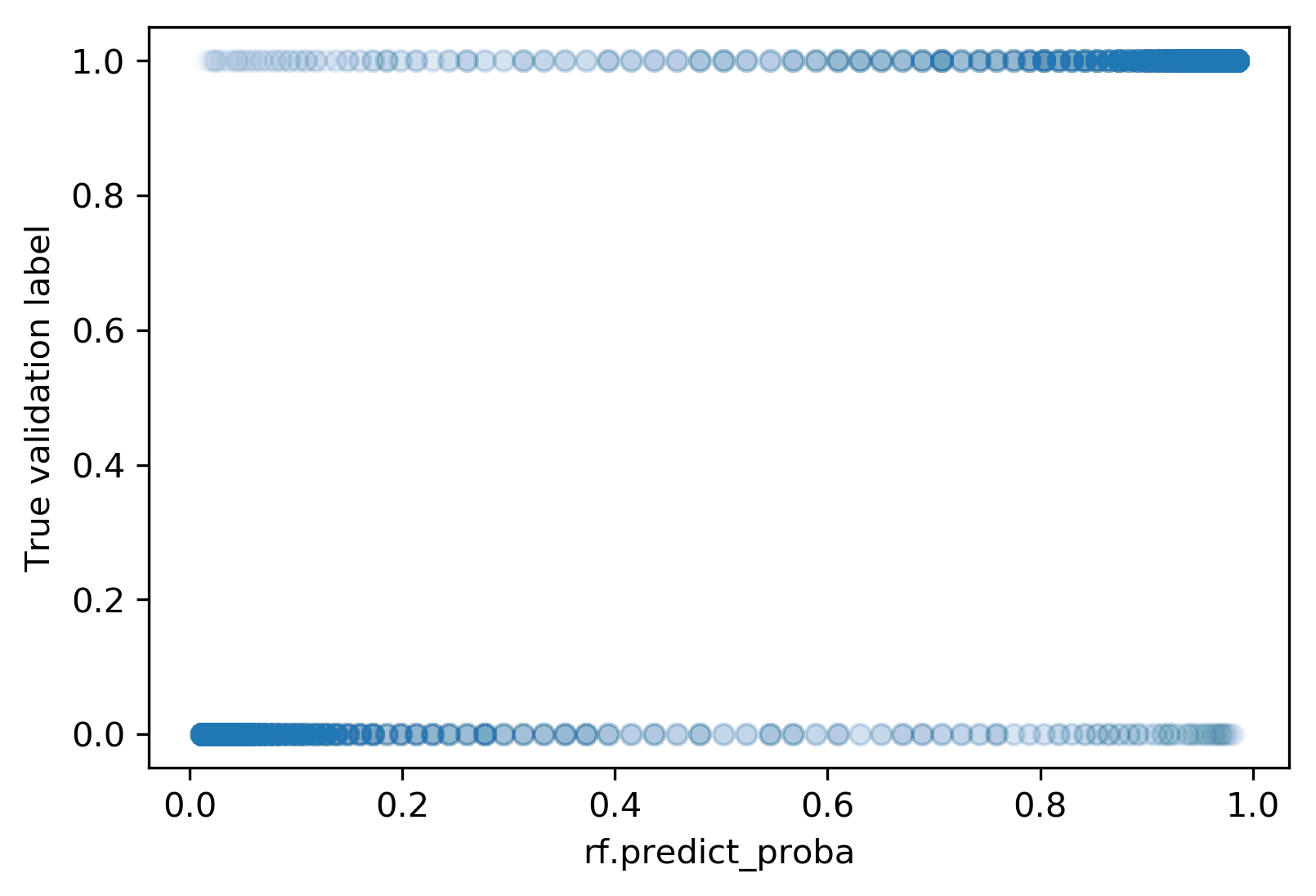

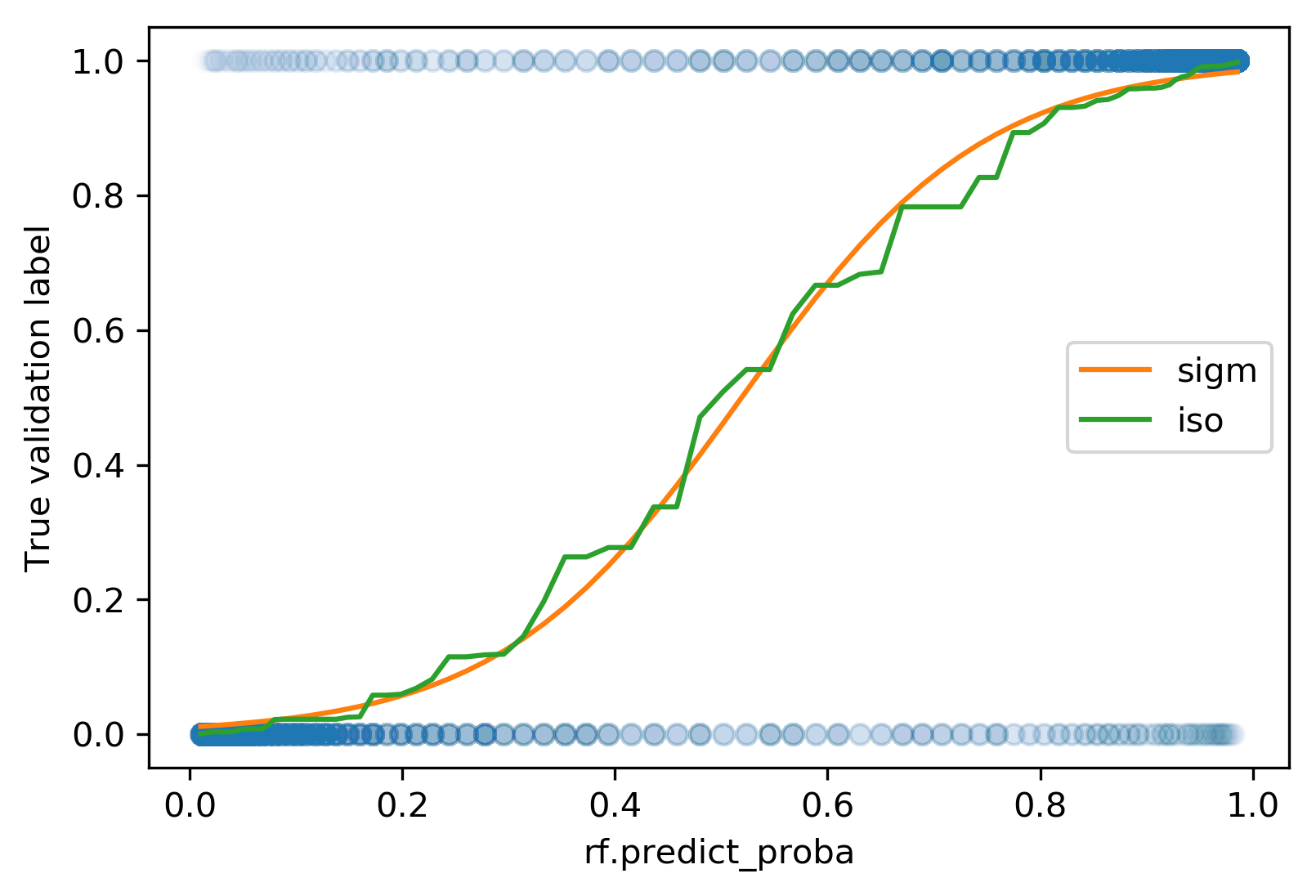

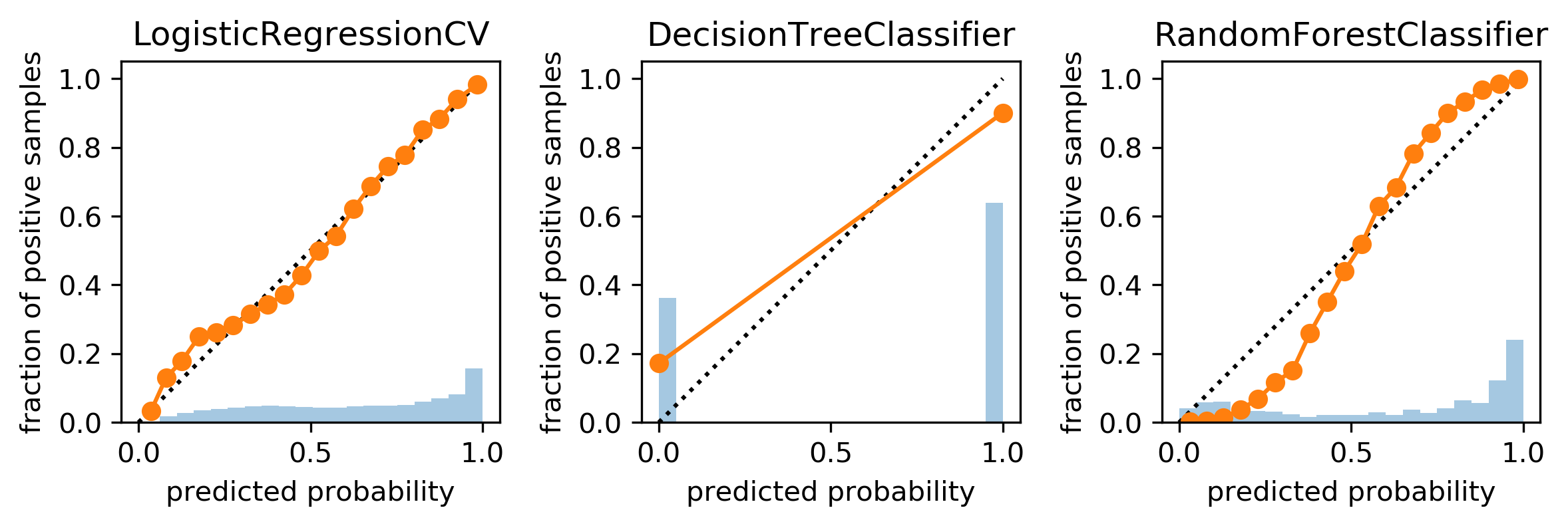

] - Probabilities can be much more informative than labels: - “The model predicted you don’t have cancer” vs “The model predicted you’re 40% likely to have cancer” ??? So the next thing I want to talk about is calibrations. Calibration also builds a model on top of a model. But the goal of calibration is to actually get accurate probability estimates. Oftentimes, we’re interested not only in the output of the classifier, but also interested in the uncertainty estimate of a classifier. So for example, think about a model that does cancer prediction. If the model predicted you don't have cancer, you're going to be pretty happy. If it says there’s a 40% chance that you have cancer, which is the same thing if you have a binary classification, you might be less happy since 40% seems pretty high for having cancer anyway. So often, we want actual probability estimates that allow us to make decisions that are finer grained than just a yes or no. Calibration is a way to get probability estimates out of any models. For example, SVMs are not good at breaking probabilities, so you can use calibration if you really want to use an SVM and get the probabilities out. Or if you have a model that already was able to predict probabilities like tree or random forests or nearest neighbors, you can use calibration to make sure that the probabilities that you get are actually good probabilities. So if you use random forest and use it to estimate probabilities, if it says “this is 70% class one”, it's not really clear what it means because the model is not really trained to optimize probability estimates so the probability estimates could be off quite a bit. --- class: spacious #Calibration curve (Reliability diagram) .left-column[ ![:scale 100%](images/prob_table.png) ] .right-column[ ![:scale 100%](images/calib_curve.png) ] ??? Before we talk about how to do calibration, I want to talk about how to measure calibration and binary classification. You can also do it for multiclass classification, but binary is much simpler. The cool thing about it is you can actually measure calibration and you can calibrate the classifier without having round first the probability estimates. So even if you only have like 0 or 1 labels you can still make sure that you have a model that provides reasonable probabilities. The way you do this if you take the probability estimates of the model, you bin the probability... So here, for example, let's say these are probabilities estimate by a model, these are my true targets. So now I sort and bin them by the probability estimates. And then I create three bins. And then I look at what is the actual prevalence of the classes in each of these bins. If these probabilities estimates were actually accurate, then let's say if I have a bin for all the 90% ones, the prevalence in the 90% bin should actually be 90%, that's sort of what it says. 90% of the points that are given a score of 90% should be the true class. And so you can plot this in the calibration curve or the reliability diagram. So here I have three bins. And basically what I wanted is the diagonal line where the bin that contains the very small probabilities has the same prevalence. And so here, for example, things that are around like 0.5 actually have zero prevalence. So there's no true class in there, which is really weird. You won’t use a diagonal line, this would be a very bad classifier. One thing that I want to emphasize here is that calibration doesn't imply that the model is accurate. These are actually two different things. If I have a binary model on a balanced data set, and it always says 50% probability for all data points. It's perfectly calibrated because it says 50% for all data points. 50% of those data points are actually the true class if the dataset is balanced. So it's a completely trivial classifier that doesn't tell you anything but perfectly calibrated, but also kind of tells you nothing because it always gives you 0.5. So you know that you can trust it basically. Calibration basically tells you how much you can trust the model. - For binary classification only - you can be calibrated and inaccurate! - Given a predicted ranking or probability from a supervised classifier, bin predictions. - Plot fraction of data that’s positive in each bin. - Doesn’t require ground truth probabilities! --- class: split-40 # calibration_curve with sklearn Using subsample of covertype dataset .left-column[ .tiny-code[ ```python from sklearn.linear_model import LogisticRegressionCV print(X_train.shape) print(np.bincount(y_train)) lr = LogisticRegressionCV().fit(X_train, y_train) (52292, 54) [19036 33256]``` ```python lr.C_ array([ 2.783]) ``` ```python print(lr.predict_proba(X_test)[:10]) print(y_test[:10]) [[ 0.681 0.319] [ 0.049 0.951] [ 0.706 0.294] [ 0.537 0.463] [ 0.819 0.181] [ 0. 1. ] [ 0.794 0.206] [ 0.676 0.324] [ 0.727 0.273] [ 0.597 0.403]] [0 1 0 1 1 1 0 0 0 1] ``` ] ] .right-column[ .tiny-code[ ```python from sklearn.calibration import calibration_curve probs = lr.predict_proba(X_test)[:, 1] prob_true, prob_pred = calibration_curve(y_test, probs, n_bins=5) print(prob_true) print(prob_pred) [ 0.2 0.303 0.458 0.709 0.934] [ 0.138 0.306 0.498 0.701 0.926] ``` ] .center[![:scale 70%](images/predprob_positive.png) ] ] ??? I'm using a subsample of cover type dataset because it's kind of big and we get some nice histograms here. So I train a logistic regression model. Logistic regression typically gives pretty good probability estimates. So I expect this model to be relatively well calibrated. For the first 10 data points, the probabilities and the actual predictions. So what I'm going to take is the predicted probabilities for all data points, for the first class and the actual predictions. Obviously, I need to do this on the test set. If I do this on the training set, then it'll tell me nothing, because on the training set the model is good. So either I need to do this on a test set or on some of the holdout set. On the training set, if I perfectly overfit, I would be doing perfect, but that's not the point. So here, I need to use a separate set and so I can compute the calibration curve. You can see the histogram here shows how many points are in this area. And here, the orange thing is the actual calibration curve, the dotted line is sort of perfect calibration. And in here, I’m using five bins. The first bin is zero until 0.2, so I would expect that 10% of the data in this bin 10 is the true class, but actually, it's more like 20%. So here, it's like not perfectly calibrated. In the second bin from 0.2 to 0.4. So what I would expect is that 30% of these data points are predicted as class one and actually- it's 30%. --- class:spacious #Influence of number of bins .center[![:scale 100%](images/influence_bins.png)] ??? How do I pick the number of bins? More bins give me more resolution. But also at some point, you get noise. So I guess it's the same way you would do for histogram. You can use the standard heuristic for histogram but usually, if you do something like 10 or 20, that's usually enough bins. - Works here because dataset is big - Might become very noisy for larger datasets --- class:spacious # Comparing Models .center[![:scale 90%](images/calib_curve_models.png)] ??? Logistic regression is pretty well calibrated. The decision tree, since I didn't use any pruning, it'll be way too certain. So all probabilities estimates, even on a test set that will be either 0 or 1. So that's not very great. Random forest classifier used here is not certain enough. Now we want to fix that. Before I want to say how we can trust them let's measure them first. --- # Brier Score (for binary classification) - “mean squared error of probability estimate” `$$ BS = \frac{\sum_{i=1}^{n} (\widehat{p} (y_i)-y_i)^{2}}{n}$$` .center[![:scale 70%](images/models_bscore.png)] ??? This graph is a nice way to look at how calibrated something is. But it's very hard to compare. A standard way to compare calibration is a Brier score, you could also use something like a log loss. Log loss would also tell you how good that a probability estimate is. Brier score is the mean squared error of probability estimates. Yi is either one or zero, basically, and p ̂ is the probability estimate. So if you predict 0.5 then it's always going to give you a loss, but it's going to give you a loss of only 0.5. If you predict 0 when you should’ve predicted 1 then it's going to give you a very large loss. Here are the brier loss for the different models. Also, the smaller is better. But this conflates accuracy and calibration a little bit because here, you can see that the random forest actually does best-. I guess it does better because just it's a more accurate model. So it's not well calibrated. But it is actually a much better predictor and so it still has a smaller score. We defined it, we can measure it and we actually want to calibrate it. --- # Fixing it: Calibrating a classifier - Build another model, mapping classifier probabilities to better probabilities! - 1d model! (or more for multi-class) `$$ f_{calib}(s(x)) \approx p(y)$$` - s(x) is score given by model, usually - Can also work with models that don’t even provide probabilities! Need model for $f_{calib}$, need to decide what data to train it on. - Can train on training set → Overfit - Can train using cross-validation → use data, slower ??? The way to do fix this is similar to stacking and that we built another model on top of the probability estimates. So usually, that's just a 1D model because we only have 1 underlying model. If you have binary classification it gives us a single probability output and so we need to learn 1D function that basically maps this probability to something that is more accurate. It also works if the model gives us a score rather than a probability. SVM only gives us a score, we can still learn one leave function that tries to get probabilities. Similar to what we did was stacking. So you don't want to learn this the calibration model on the training data set because on train dataset you're doing very well. So you need to use either a whole dataset or you need to use cross-validation again. --- # Platt Scaling - Use a logistic sigmoid for $f_{calib}$ - Basically learning a 1d logistic regression - (+ some tricks) - Works well for SVMs `$$f_{platt} = \frac{1}{1 + exp(-ws(x) - b)}$$` ??? There are two main methods that people use and both are in scikit-learn. One is Platt scaling, Platt scaling is basically the same as 1D logistic regression. So you learn to 1d just sigmoid plus, there's like some new tricks. This basically allows you to fix a particular sigmoid shape that you usually get from SVM scores and this works well for SVMs. But you only have one parameter here, so there's not a lot that you can tune. --- # Isotonic Regression - Very flexible way to specify $f_{calib}$ - Learns arbitrary monotonically increasing step-functions in 1d. - Groups data into constant parts, steps in between. - Optimum monotone function on training data (wrt mse). .center[![:scale 40%](images/isotonic_regression.png)] ??? The other one is Isotonic regression, which is basically a non-parametric mapping. What it does is it fits the monotone function that minimizes the squared error. The problem it’s solving is the peace wise constant function that’s monotonous with minimums error. So this what it looks like and so if you have to data in red, then standard regression will find this green thing. In Platt scaling, s(x) is what the model scores, the score that comes from the SVM or random forest. The w is the one parameter you learn from the data. This is a very inflexible model that allows you to say how steep should the sigmoid correction be while Isotonic regression is a very flexible model that allows you to correct anything in any way, it’s monotonous. --- class:spacious # Building the model - Using the training set is bad - Either use hold-out set or cross-validation - Cross-validation can be used to make unbiased probability predictions, use that as training set. ??? --- class: center # Fitting the calibration model ![:scale 70%](images/calibration_val_scores.png) --- class: center # Fitting the calibration model ![:scale 70%](images/calibration_val_scores_fitted.png) --- # CalibratedClassifierCV .tiny-code[ ```python from sklearn.calibration import CalibratedClassifierCV X_train_sub, X_val, y_train_sub, y_val = train_test_split(X_train, y_train, stratify=y_train, random_state=0) rf = RandomForestClassifier().fit(X_train_sub, y_train_sub) scores = rf.predict_proba(X_test)[:, 1] plot_calibration_curve(y_test, scores, n_bins=20) ``` .center[![:scale 30%](images/random_forest.png)] ] ??? --- # Calibration on Random Forest .smaller[ ```python cal_rf = CalibratedClassifierCV(rf, cv="prefit", method='sigmoid') cal_rf.fit(X_val, y_val) scores_sigm = cal_rf.predict_proba(X_test)[:, 1] cal_rf_iso = CalibratedClassifierCV(rf, cv="prefit", method='isotonic') cal_rf_iso.fit(X_val, y_val) scores_iso = cal_rf_iso.predict_proba(X_test)[:, 1] ```] .center[![:scale 90%](images/types_calib.png)] ??? This is for a random forest again. It can use calibrated classifier CV. This does calibration. You can either you do it with single hold-out dataset or with cross-validation. Here, I'm using a single holdout set. I split my dataset, the training set into X_train_sub and X_val. X_train_sub is what I used to train a random forest and then x_val is what I'm going to use to calibrate it. I created calibrated classifier CV with the random forest that I’ve already fit on the training dataset. I set cross-validation to prefit and set the method to sigmoid. And then I can fit this calibration model on the validation set. So here is what this looks like, the random forest model with no calibration, with sigma calibration and with isotonic calibration. In this case, sigmoid and isotonic don't look very different. They both look like reasonably calibrated. That said if you're doing sort of holdout set, destroying away a bunch of data for training your first model. --- # Cross-validated Calibration ```python cal_rf_iso_cv = CalibratedClassifierCV(rf, method='isotonic') cal_rf_iso_cv.fit(X_train, y_train) scores_iso_cv = cal_rf_iso_cv.predict_proba(X_test)[:, 1] ``` .center[![:scale 90%](images/types_calib_cv.png)] ??? So we can also not specify CV, then it uses cross-validation, I think 3 fold by default. And so then it does the whole cross-validation thing internally. And then I get an even better calibration. So what it does here for each cross-validation it trains a separate model. And then if I want to predict on the test set, it uses all of these models and then averages them. So in a sense, it's not very surprising that I get a better result here because I built 3 random forest models on subsets of the data and then average them. I calibrated them and I averaged calibrated models. So I basically just build a bigger random forest, so it's not very surprising that it does better. Also, we were able to use more data. So if you do this, you retain as many models as there are cross-validation folds and you use all of them in prediction. - kinda cheating, we have more trees now lol - we use all the data, get good probabilities. just time-consuming --- # Multi-Class Calibration .center[![:scale 100%](images/multi_class_calibration.png)] ??? You can also do this for multi-class calibration, which does basically the same thing, but you just do it for each class individually and then you normalize again and you can make pretty pictures. - per-class calibratoin - renormalization --- class: center, middle ## Recap on imbalanced data ??? --- class: spacious # Two sources of imbalance - Asymmetric cost - Asymmetric data ??? In general, there's are two ways in which a classification task can be imbalanced. First one is asymmetric costs. Even if the probability of class 0 and class 1 are the same, they might be different like in business costs, or health costs, or any other kind of cost or benefit associated with making different kinds of mistakes. The second one is having asymmetrical data. Meaning that one class is much more common than the other class. --- class: spacious # Why do we care? - Why should cost be symmetric? - All data is imbalanced - Detect rare events ??? One of these two is true in basically all real world applications. Usually, both of them are true. There's no reason why a false positive and a false negative should have the same business cost, they’re usually very, very different things, no matter whether you do ad-click prediction or whether you do health, the two kinds of mistakes are usually quite different, and have quite different real world consequences. Also, data is always imbalanced, and often very drastically. In particular if you do diagnosis, or if you do ad clicks-or marketing….For ad-clicks, I think it's like below 0.01% of ads I clicked on, depending on how good doing with your targeting. So very often, we have very few positives. And so this is really a topic that is basically all of classification. So balance classification with balance costs, is not really something that happens a lot in the real world. --- # Changing Thresholds .tiny-code[ ```python data = load_breast_cancer() X_train, X_test, y_train, y_test = train_test_split( data.data, data.target, stratify=data.target, random_state=0) lr = LogisticRegression().fit(X_train, y_train) y_pred = lr.predict(X_test) classification_report(y_test, y_pred) ``` ``` precision recall f1-score support 0 0.91 0.92 0.92 53 1 0.96 0.94 0.95 90 avg/total 0.94 0.94 0.94 143 ``` ```python y_pred = lr.predict_proba(X_test)[:, 1] > .85 classification_report(y_test, y_pred) ``` ``` precision recall f1-score support 0 0.84 1.00 0.91 53 1 1.00 0.89 0.94 90 avg/total 0.94 0.93 0.93 143 ``` ] ??? So apart from evaluation we talked about one way we could’ve changed the outcome to take into account which was changing the threshold of greater probability. So not only taking into account the predicted class. Assume I have a logistic regression model and I can either use the predict method which basically makes the cut off at 0.5 probability of the positive class, then I can look at the classification report, which will tell me precision and recall for both the positive and the negative class. But if I want to increase recall for class 0 or increase precision for class 1, I can say only predict things as class 1 where the estimated probability of class 1 is 0.85. And then I will have only the ones that I'm very certain predicted as class 1. If you have given actual a cost function of how much each mistake costs, you can optimize this threshold. FIXME new classification report!! --- # Roc Curve .center[ ![:scale 85%](images/roc_svc_rf_curve.png) ] ??? We also looked at ROC curves, which basically look at all possible thresholds as you can apply. Either for probabilistic prediction, or for any sort of continuous uncertainty estimate. --- class: center, middle ## Remedies for the model ??? Today, I really want to talk about more, how we can change the model more than just changing the threshold. So how can we change the building of the model so that it takes into account the asymmetric costs, or asymmetric data. --- # Mammography Data .smallest[ .left-column[ ```python from sklearn.datasets import fetch_openml # mammography https://www.openml.org/d/310 data = fetch_openml('mammography', as_frame=True) X, y = data.data, data.target X.shape ``` (11183, 6) ```python y.value_counts() ``` ``` -1 10923 1 260 ``` ] .right-column[ .center[ ![:scale 100%](images/mammography_data.png) ] ] .reset-column[ ```python # make y boolean # this allows sklearn to determine the positive class more easily X_train, X_test, y_train, y_test = train_test_split(X, y == '1', random_state=0) ``` ] ] ??? I use this mammography data set, which is very imbalanced. This is a data set that has many samples, only six features and it's very imbalanced. The datasets are about mammography data, and whether there are calcium deposits in the breast. They are often mistaken for cancer, which is why it's good to detect them. Since its rigidly low dimensional, we can do a scatter plot. And we can see that these are much skewed distributions and there's really a lot more of one class than the other. --- # Mammography Data .smaller[ ```python from sklearn.model_selection import cross_validate from sklearn.linear_model import LogisticRegression scores = cross_validate(LogisticRegression(), X_train, y_train, cv=10, scoring=('roc_auc', 'average_precision')) scores['test_roc_auc'].mean(), scores['test_average_precision'].mean() ``` 0.920, 0.630 ```python from sklearn.ensemble import RandomForestClassifier scores = cross_validate(RandomForestClassifier(), X_train, y_train, cv=10, scoring=('roc_auc', 'average_precision')) scores['test_roc_auc'].mean(), scores['test_average_precision'].mean() ``` 0.939, 0.722 ] ??? So as a baseline here is just evaluating logistic regression and the random forest on this. Actually, I ran it under ROC curve and average precision. I’ve used a cross-validate function model selection that allows you to specify multiple metrics. So I only need to train the model once but I can look at multiple metrics. I do a 10 fold cross-validation on the data set and I split into training and test and so I can look at the scores here. The scores are dictionary, they give me training and test scores for all the metrics I specified. And so you can look at the mean test drug score and the mean test average precision score. This gives a high AUC and a quite low average precision. Here is a second baseline with a random forest doing the same evaluation with ROC AUC and average precision. We get slightly higher AUC and quite a bit higher average precision. --- # Basic Approaches .left-column[ .center[ ![:scale 100%](images/basic_approaches.png) ] ] .right-column[ Change the training procedure ] ??? Now we want to change these basic training methods to be better adapted to this imbalanced dataset. There are generally two approaches. One is changing the data. And the other is change the training procedure and how you built the model. The easier one is to change the data. We can either add samples to the data, we can remove samples to the data, or we can do both. Resampling is not possible in scikit-learn because of some API issues. --- class: center, spacious # Sckit-learn vs resampling ![:scale 55%](images/pipeline.png) ??? The problem with pipelines, as they're in scikit-learn right now is, if you create a pipeline, and you call fit, it'll always use the original y and the output of a transformer is always a transformed x. So we can't change y. So we can re-sample the data. - The transform method only transforms X - Pipelines work by chaining transforms - To resample the data, we need to also change y --- class: spacious # Imbalance-Learn http://imbalanced-learn.org ``` pip install -U imbalanced-learn ``` Extends `sklearn` API ??? So we're going to use imbalance learn, which is an extension of the scikit-learn API that basically allows us to resample. --- ### Sampler To resample a data sets, each sampler implements: ```python data_resampled, targets_resampled = obj.sample(data, targets) ``` Fitting and sampling can also be done in one step: ```python data_resampled, targets_resampled = obj.fit_sample(data, targets) ``` --
In Pipelines: Sampling only done in `fit`! ??? This extends sampler objects in scikit-learn. The sampler objects have a sample method which returns resample data and resample targets. There’s also pipelines in imbalance learn. The important part here is the sampling is only done in fit. So only your training data will be resampled. But when you do predictions, you want predictions to be made on the whole test set, and on the original test set. So you don't want to mess with the test set in your evaluation. So resampling is only done when you're building a model. - Imbalance-learn extends scikit-learn interface with a “sample” method. - Imbalance-learn has a custom pipeline that allows resampling. - Imbalance-learn: resampling is only performed during fitting - Warning: not everything in imbalance-learn is multiclass! --- # Random Undersampling ```python from imblearn.under_sampling import RandomUnderSampler rus = RandomUnderSampler(replacement=False) X_train_subsample, y_train_subsample = rus.fit_sample( X_train, y_train) print(X_train.shape) print(X_train_subsample.shape) print(np.bincount(y_train_subsample)) ``` ``` (8387, 6) (390, 6) [195 195] ``` ??? The easiest strategy is randomly undersampling. The default strategy is to undersample the majority class so that it has the same size as the minority class, that's implemented in the random under sampler. Here, I instantiate to random under sampler, I set replacement equal to false, which means sampling without replacement and then I can do fit sample on the training set. And so the original training set was 8387 samples, the subsample data set is only 390 samples. And you can see now in the bin count here, the data set is balanced. Basically, I reduced the majority class randomly to a very much smaller dataset, which made the majority class the same size as the minority class. And you can see that the dataset is 20 times smaller because the dataset was imbalanced. So building anything on this dataset will be much much faster. But also keep in mind, we threw away 98% of our data in doing that. - Drop data from the majority class randomly - Often untill balanced - Very fast training (data shrinks to 2x minority) - Loses data ! --- # Random Undersampling .smaller[ ```python from imblearn.pipeline import make_pipeline as make_imb_pipeline undersample_pipe = make_imb_pipeline(RandomUnderSampler(), LogisticRegressionCV()) scores = cross_validate(undersample_pipe, X_train, y_train, cv=10, scoring=('roc_auc', 'average_precision')) scores['test_roc_auc'].mean(), scores['test_average_precision'].mean() # baseline was 0.920, 0.630 ``` ``` 0.927, 0.527 ``` ] -- .smaller[ ```python undersample_pipe_rf = make_imb_pipeline(RandomUnderSampler(), RandomForestClassifier()) scores = cross_validate(undersample_pipe_rf, X_train, y_train, cv=10, scoring=('roc_auc', 'average_precision')) scores['test_roc_auc'].mean(), scores['test_average_precision'].mean() # baseline was 0.939, 0.722 ``` ``` 0.951, 0.629 ``` ] ??? Looking at the result, ROC AUC actually improved a little bit while the average precision decreased a little bit. Given that we threw away 98% of our data, I think the fact that the ROC AUC improved is quite remarkable. So this is clearly still a reasonable model, given one particular measure, it’s even a better model even though we threw away most of the data. Even though it's very simplistic, it's actually a viable strategy that people often use in practice. In particular, if you have a very big data set, you might not have enough compute to actually do something on the whole dataset or you might only do something simple on the whole dataset. But after you resampled it, you can maybe train a much more complicated model. Here by default, this random under simpler makes it balanced but of course, you could be slightly less extreme, so that you throw away a little bit fewer data. We can do the same thing with random forest. After computing, the area under the ROC curve actually went up substantially. Again, it's quite surprising given that we used much less data, but the average precision went down quite a bit. - As accurate with fraction of samples! - Really good for large datasets --- # Random Oversampling ```python from imblearn.over_sampling import RandomOverSampler ros = RandomOverSampler() X_train_oversample, y_train_oversample = ros.fit_sample( X_train, y_train) print(X_train.shape) print(X_train_oversample.shape) print(np.bincount(y_train_oversample)) ``` ``` (8387, 6) (16384, 6) [8192 8192] ``` ??? - Repeat samples from the minority class randomly - Often untill balanced - Much slower (dataset grows to 2x majority) --- # Random Oversampling .smaller[ ```python oversample_pipe = make_imb_pipeline(RandomOverSampler(), LogisticRegression()) scores = cross_validate(oversample_pipe, X_train, y_train, cv=10, scoring=('roc_auc', 'average_precision')) scores['test_roc_auc'].mean(), scores['test_average_precision'].mean() # baseline was 0.920, 0.630 ``` 0.917, 0.585 ] -- .smaller[ ```python oversample_pipe_rf = make_imb_pipeline(RandomOverSampler(), RandomForestClassifier()) scores = cross_validate(oversample_pipe_rf, X_train, y_train, cv=10, scoring=('roc_auc', 'average_precision')) scores['test_roc_auc'].mean(), scores['test_average_precision'].mean() # baseline was 0.939, 0.722 ``` 0.926, 0.715 ] ??? The complement of doing random sampling of the data is random oversampling of data. So in random oversampling, we do the opposite. We basically resample the training dataset so that the minority class has the same number of samples as the majority class. Given that this dataset was very imbalanced, we nearly doubled the size of the training dataset. So now everything will be actually much slower because we have many more samples. We nearly doubled the dataset size because we reproduced many copies of the minority class and then we have a balanced dataset again. Here, what we did is we just sampled with replacement. We sampled with replacement about 8000 times from this pool of 195 samples. Q: Does that mean there are repeat records? Yeah, most of them are repeated like 40 times on average. Q: What distribution you’re sampling from? We're not sampling IID from the original distribution because in the original distribution there was a strongly imbalanced. So we now sample from the traditional distributions basically where we sample first the label and then we sample from this class. And we do this for the two labels independently in the same amount of time. It's slightly weird because we have a lot of copies of the sample. Logreg the same, Random Forest much worse than undersampling (about same as doing nothing) --- # Curves for LogReg .center[ ![:scale 100%](images/curves_logreg.png) ] ??? Here, I’m making a pipeline with logistic aggression random forest and you can see that the area under the ROC curve is actually lower, while the average precision is higher than with undersampling but slightly lower than the original dataset. --- # Curves for Random Forest .center[ ![:scale 100%](images/curves_rf.png) ] ??? We can also look at the curves. We have on the left, the ROC curve for logistic regression with the original data set, the oversample, and the under-sample dataset. On the right-hand side, we have the recall curve. These are the same for random forest. If you look at these curves from afar, they give you the exact opposite ideas. On the left, under sample seems to be best and oversample is the worst while under sample is clearly the worst and under sample is not so bad on the curve in the right. If I look at the precision-recall curve, the original data set did best. Looking at these two curves you get quite different ideas. The TPR axis is the same as the recall axis. The idea is since we have the cost function, we know which could be the area under one of these curves, or could be a particular recall or position value or particular cost matrix we want to achieve and we want to optimize this. And we hope that by taking into account the imbalance of the classes, we can optimize this cost better than just basically using the IID data set. But precision and false positive rate measure quite different things. --- class: spacious # Class-weights - Instead of repeating samples, re-weight the loss function. - Works for most models! - Same effect as over-sampling (though not random), but not as expensive (dataset size the same). ??? One way we can make the resampling more efficient is by using class weights instead of actually resampling. So we can change our loss function to do the same thing as if you would resample but under sampling case, we don't actually throw away any data and in the oversampling case, we don't actually make our computational problem harder by repeating some of the samples. This works for most models and it's pretty simple to do in scikit-learn. Basically, it's the same as oversampling in a sense because you're not throwing away any data. --- class: spacious # Class-weights in linear models `$$\min_{w \in ℝ^{p}, b \in \mathbb{R}}-C \sum_{i=1}^n\log(\exp(-y_i(w^T \textbf{x}_i + b )) + 1) + ||w||_2^2$$` `$$\min_{w \in ℝ^{p}, b \in \mathbb{R}}-C \sum_{i=1}^n c_{y_i} \log(\exp(-y_i(w^T \textbf{x}_i + b )) + 1) + ||w||_2^2$$` Similar for linear and non-linear SVM ??? So for the linear model, for example, let's say we do logistic regression. Instead of minimizing this problem, for each class, we have a class weight c_(y_i ) and so the loss for each sample gets multiplied by this class weight and usually, they sum to one. This is similar to having a different penalty C for all of the different classes. You can see that this is the same as if I repeat each sample x_i c_(y_i ) many times in each class. So if I set the cost weight of one class to 2, that would be the same as repeating each sample in this class twice, only now I don't actually have to duplicate any sampling. So this is cheaper than over sampling but has the same effect. You can do this for hinge loss and SVMs by just changing the loss. --- # Class weights in trees Gini Index: `$$H_\text{gini}(X_m) = \sum_{k\in\mathcal{Y}} p_{mk} (1 - p_{mk})$$` `$$H_\text{gini}(X_m) = \sum_{k\in\mathcal{Y}} c_k p_{mk} (1 - p_{mk})$$` Prediction: Weighted vote ??? For trees and all trees based models, you can just change the splitting criteria. For example, if you have a Gini index here, and you compute the Gini index for each class or the cross-entropy for each class, and you have the class weights in here. And again, you can see this is the same as replicating the data points c_k many times. If you want to make predictions, you can do a weighted vote. --- #Using Class-Weights .smaller[ ```python scores = cross_validate(LogisticRegression(class_weight='balanced'), X_train, y_train, cv=10, scoring=('roc_auc', 'average_precision')) scores['test_roc_auc'].mean(), scores['test_average_precision'].mean() # baseline was 0.920, 0.630 ``` 0.918, 0.587 ```python scores = cross_validate(RandomForestClassifier(n_estimators=100, class_weight='balanced'), X_train, y_train, cv=10, scoring=('roc_auc', 'average_precision')) scores['test_roc_auc'].mean(), scores['test_average_precision'].mean() # baseline was 0.939, 0.722 ``` 0.917, 0.701 ] ??? In scikit-learn, all the classifier has a class weight parameter. You can set them to anything you want, basically, giving arbitrary integers to the particular classes, there is normalized sum to one. Balanced setting means do the same as oversampling so that the populations have the same size for all the classes. You can see this has a somewhat similar effect to the oversampling for only half the computational price. This is a pretty simple way to try to change the model towards a positive class. --- class: spacious # Ensemble Resampling - Random resampling separate for each instance in an ensemble! - Chen, Liaw, Breiman: “Using random forest to learn imbalanced data.” - Paper: “Exploratory Undersampling for Class Imbalance Learning” - Not in sklearn (yet) - Easy with imblearn ??? There’s something a little bit better that’s called easy ensembles or resampling within an ensemble. So the idea is you build an ensemble like bagging classifier, but instead of doing a bootstrap sample, you can do a random undersampling into a balance dataset separately for each classifier in ensemble. Right now, you can only do this with imbalance learn. --- # Easy Ensemble with imblearn .smaller[ ```python from sklearn.tree import DecisionTreeClassifier from imblearn.ensemble import BalancedBaggingClassifier # from imblearn.ensemble import BalancedRandomForestClassifier # resampled_rf = BalancedRandomForestClassifier() tree = DecisionTreeClassifier(max_features='auto') resampled_rf = BalancedBaggingClassifier(base_estimator=tree, random_state=0) scores = cross_validate(resampled_rf, X_train, y_train, cv=10, scoring=('roc_auc', 'average_precision')) scores['test_roc_auc'].mean(), scores['test_average_precision'].mean() # baseline was 0.939, 0.722 ``` 0.957, 0.654 ] ??? For example, I can do a balanced random forest, I’m using a decision tree as a base classifier with max features as auto. For classifier, this is the square root of number of features. And so this will build 100 estimators. Each estimator will be basically trained on the random undersample of the data set. So I do a random under a sample of the data set 100 times and I build a tree on each of them. So this is exactly as expensive as building a random forest on the undersample data set, which is pretty cheap because under sampling throws away most of the data. In fact, we're not throwing away as much data, we're keeping a lot of the data but only in different trees in the ensemble. Of all the models that we looked at today, this is the best one in terms of area under the curve. It’s cheap to do and it allows you to use a lot of your data in a pretty nice way. This has been shown to be like pretty competitive in a bunch of benchmarks. -As cheap as undersampling, but much better results than anything else! -Didn't do anything for Logistic Regression. --- class: center, middle ![:scale 100%](images/roc_vs_pr.png) ??? Looking at the curves again, comparing the easy ensemble. You can see that in the higher recall area, it does quite well and in the high precision area, it does better than just undersampling. So remember, this is much much cheaper than the oversampling by a large amount. And so if we are anywhere in this area here, it seems to be like a pretty decent solution. To explain the difference between easy ensemble and under sample….In undersampling, I randomly under sample the dataset once. So then I have a balance dataset 195-195 and I built a model on this. And in this case, I build a random forest model. And in the easy ensemble, what I do is for each tree in the random forest I separately do an undersampling in 295-95. So they will all have the same minority class samples, but they all will have different majority class samples. So in total, I'm looking at more than 195 samples from the majority class since I under sample for each tree in a different way. That makes it quite a bit better. These are all the randomly sample methods that I want to talk about. You can see that here, they make quite a big difference. Depending on where you want to be on this precision-recall curve, you would choose quite different methods. --- class: center, middle ## Synthetic Sample Generation ??? There are many methods, but the only method that your interviewer will expect you to know is SMOTE. --- # Synthetic Minority Oversampling Technique (SMOTE) - Adds synthetic interpolated data to smaller class - For each sample in minority class: – Pick random neighbor from k neighbors. – Pick point on line connecting the two uniformly (or within rectangle) – Repeat. ??? I don't think it's actually used commonly in practice like the random oversampling and random undersampling. In particular, the undersample is great because it makes everything much faster. The idea is to add samples to the smaller class. So you synthetically want to add samples that kind of looks like the smaller class and this way hopefully, bias the classifier more towards the smaller class. It's also neighbor space so again if you have a very big dataset or if you’re in a very high dimension this might be slow. So in very high dimensions not even work that well. So what we're doing here is for each sample on the minority class you pick a random neighbor among the K nearest neighbors and then you pick a point on the line between the two. - Leads to very large datasets (oversampling) - Can be combined with undersampling strategies --- class: center, middle .center[ ![:scale 100%](images/smote_mammography.png) ] ??? This is feature three and feature four from the mammography dataset. You can see basically that for this dataset it’s pretty far away, K is three and so these neighbors were picked and then a bunch of times points was randomly picked on the line between the two. So basically, you get something that is sort of connecting all two data points. This might set of make more sense than just repeating the sample over and over again. But also, if you're in high dimensions, it's not entirely clear how well this will work. --- .smaller[ ```python smote_pipe = make_imb_pipeline(SMOTE(), LogisticRegression()) scores = cross_validate(smote_pipe, X_train, y_train, cv=10, scoring=('roc_auc', 'average_precision')) pd.DataFrame(scores)[['test_roc_auc', 'test_average_precision']].mean() # baseline was 0.920, 0.630 ``` 0.919, 0.585 ```python smote_pipe_rf = make_imb_pipeline(SMOTE(), RandomForestClassifier()) scores = cross_validate(smote_pipe_rf, X_train, y_train, cv=10, scoring=('roc_auc', 'average_precision')) pd.DataFrame(scores)[['test_roc_auc', 'test_average_precision']].mean() # baseline was 0.939, 0.722 ``` 0.946, 0.688 ] ??? The results are pretty similar to either the original dataset or the random sampling. Performing nearest neighbors, I found 11 to be best. --- .smaller[ ```python param_grid = {'smote__k_neighbors': [3, 5, 7, 9, 11, 15, 31]} search = GridSearchCV(smote_pipe_rf, param_grid, cv=10, scoring="average_precision") search.fit(X_train, y_train) results = pd.DataFrame(search.cv_results_) results.plot("param_smote__k_neighbors", ["mean_test_score", "mean_train_score"]) ``` ] .center[ ![:scale 60%](images/param_smote_k_neighbors.png) ] ??? Also here in these plots, it looks now, there are more yellow points than purple points that's because I followed the purple points first and then the yellow points. Because if I didn't, then in the original data, you wouldn't see any yellow points. Again, if you look at the metrics, this doesn't really make a big difference. --- .center[ ![:scale 100%](images/smote_k_neighbors.png) ] ??? --- class: center, middle .center[ ![:scale 100%](images/roc_vs_pr_smote.png) ] ??? --- class: spacious # Summary - Always check roc_auc and average_precision look at curves - Undersampling is very fast and can help! - Undersampling + Ensembles is very powerful! - Can add synthetic samples with SMOTE ??? Always check the ROC AUC and the average precision and look at the curves. You’ve seen that the different strategies and different parts of the curves, they behave quite differently. Undersampling is really fast, and it can sometimes make things better. So I would always try under sampling just because maybe your model is slightly worse but if you get 100 times to speed up, it's still worth it. Using undersampling with easy ensembles is as fast as undersampling, but often gives better results. People in machine learning research like balance datasets, but in the real world data sets are never balanced. Unfortunately, most of the datasets we have come from machine learning researchers. And so there's really not a lot of interesting data sets that are very balanced. The other thing I could have covered is you can directly optimize particular metrics. So you can train a model to optimize precision at K or area under the curve or something like that, at least for linear model, that's relatively straightforward. I'm not sure what the outcome was if someone tried it with trees. But I think the most common is just reweighting to samples.
