Model Evaluation

class: center, middle

![:scale 40%](images/sklearn_logo.png)

### Advanced Machine Learning with scikit-learn

# Model Evaluation in Classification

Andreas C. Müller

Columbia University, scikit-learn

.smaller[https://github.com/amueller/ml-training-advanced]

???
FIXME macro vs weighted average example
FIXME balanced accuracy?
FIXME move mape before plotting? or all metrics after?
FIXME remove regression, go into more depth on cost-sensitive!
FIXME relate to calibration!
move using metrics in CV to the end?

How to pick thresholds in multi-class?

---
class: centre,middle
# Metrics for Binary Classification
???

---

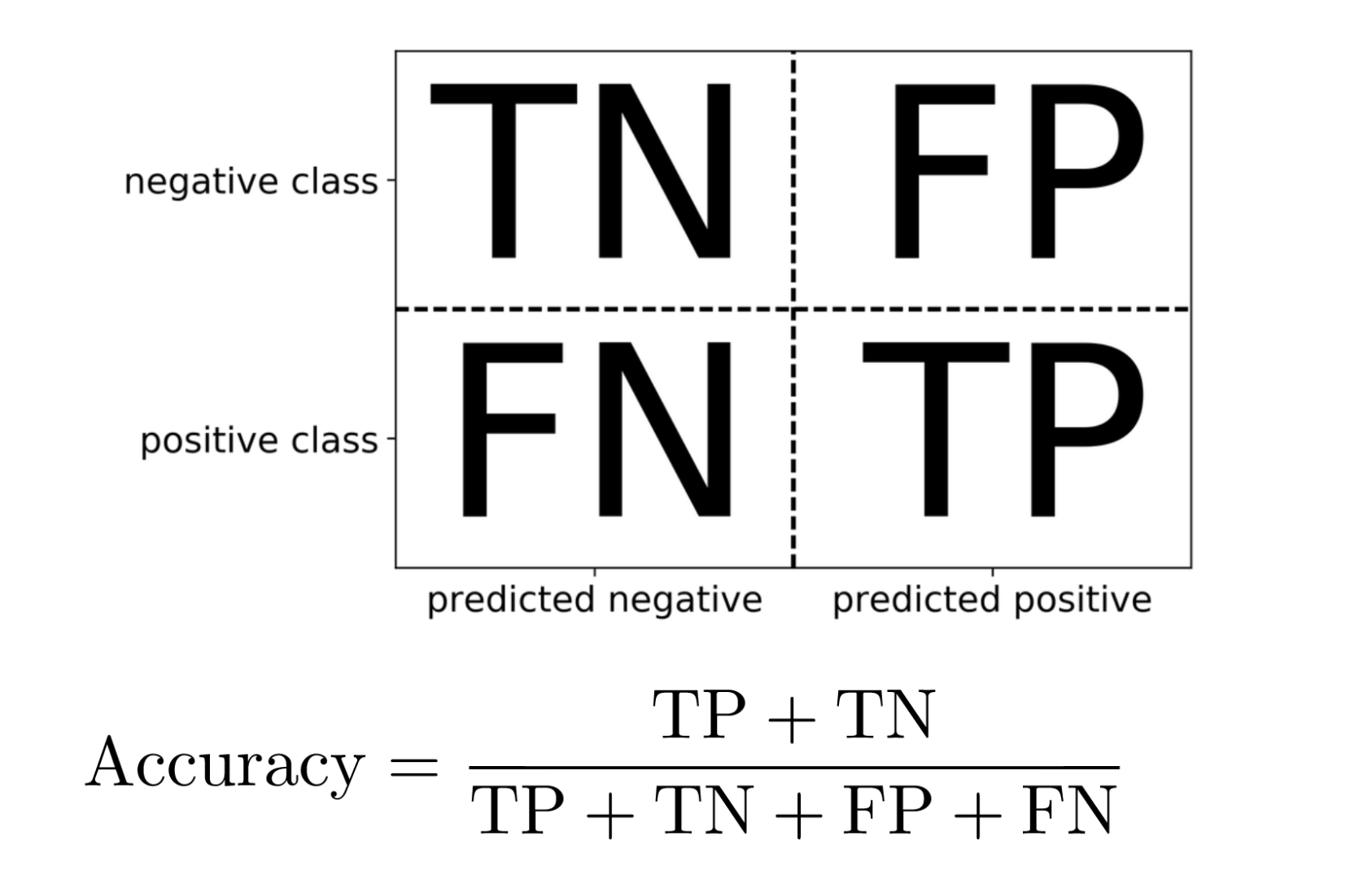

# Review : confusion matrix
.center[
![:scale 75%](images/confusion_matrix.png)
]

???
Diagonal divided by everything.

---
#
.smaller[
```python
from sklearn.datasets import load_breast_cancer
from sklearn.linear_model import LogisticRegression
data = load_breast_cancer()

X_train, X_test, y_train, y_test = train_test_split(
    data.data, data.target, stratify=data.target, random_state=0)

lr = LogisticRegression().fit(X_train, y_train)
y_pred = lr.predict(X_test)

from sklearn.metrics import confusion_matrix
print(confusion_matrix(y_test, y_pred))
print(lr.score(X_test, y_test))
```
]

![:scale 20%](images/breast_cancer_cf_matrix.png)
---

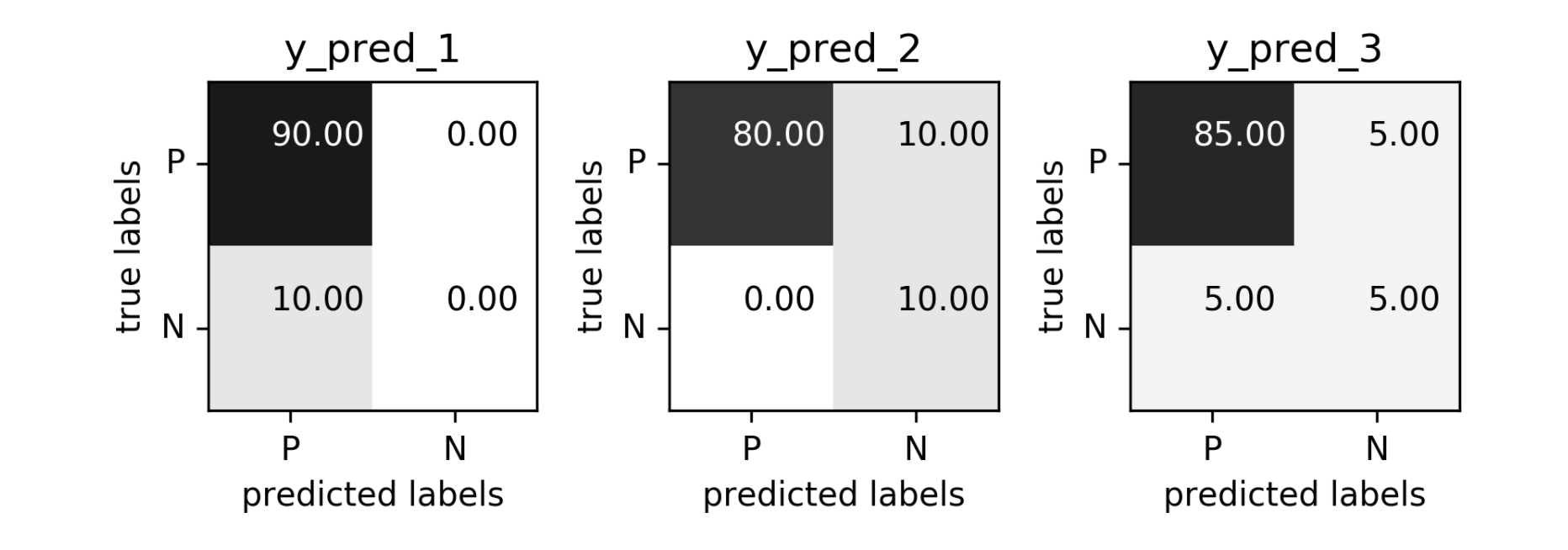

# Problems with Accuracy
Data with 90% positives:
.smaller[
```python
from sklearn.metrics import accuracy_score
for y_pred in [y_pred_1, y_pred_2, y_pred_3]:
    print(accuracy_score(y_true, y_pred))
```
```
0.9
0.9
0.9
```
]
.center[
![:scale 70%](images/problems_with_accuracy.png)
]
???
- Imbalanced classes lead to hard-to-interpret accuracy.

---
class:split-40
# Precision, Recall, f-score
.left-column[
`$$ \large\text{Precision} = \frac{\text{TP}}{\text{TP}+\text{FP}}$$`
`$$\large\text{Recall} = \frac{\text{TP}}{\text{TP}+\text{FN}}$$`
`$$\large\text{F} = 2 \frac{\text{precision} \cdot\text{recall}}{\text{precision}+\text{recall}}$$`]
.right-column[

Positive Predicted Value (PPV)




Sensitivity, coverage, true positive rate.




Harmonic mean of precision and recall
]
???
All depend on definition of positive and negative.

---
class: center, spacious

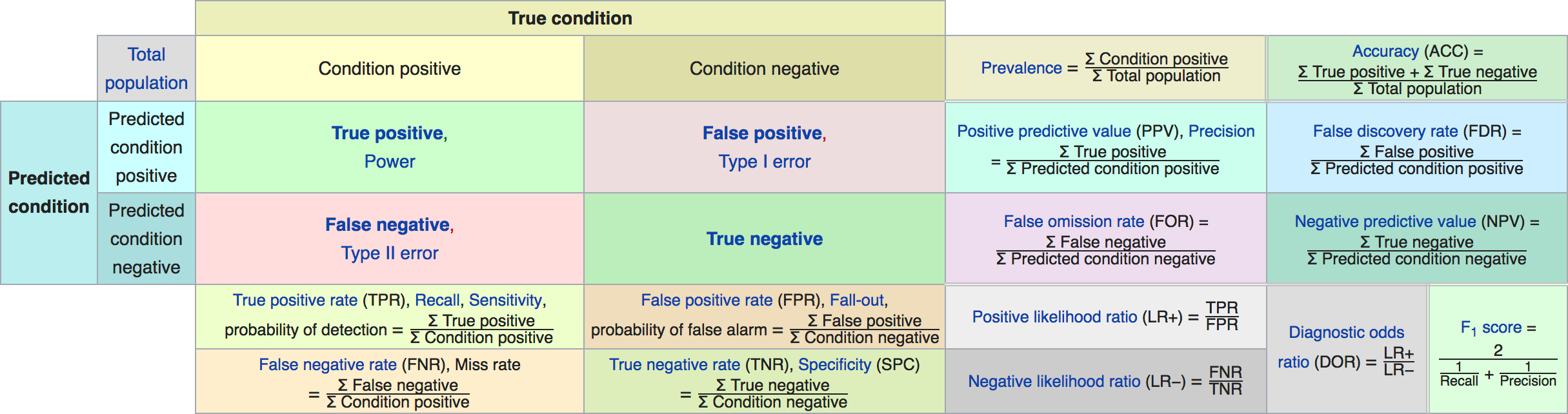

# The Zoo
![:scale 100%](images/zoo.png)

https://en.wikipedia.org/wiki/Precision_and_recall
???
---

class:split-40

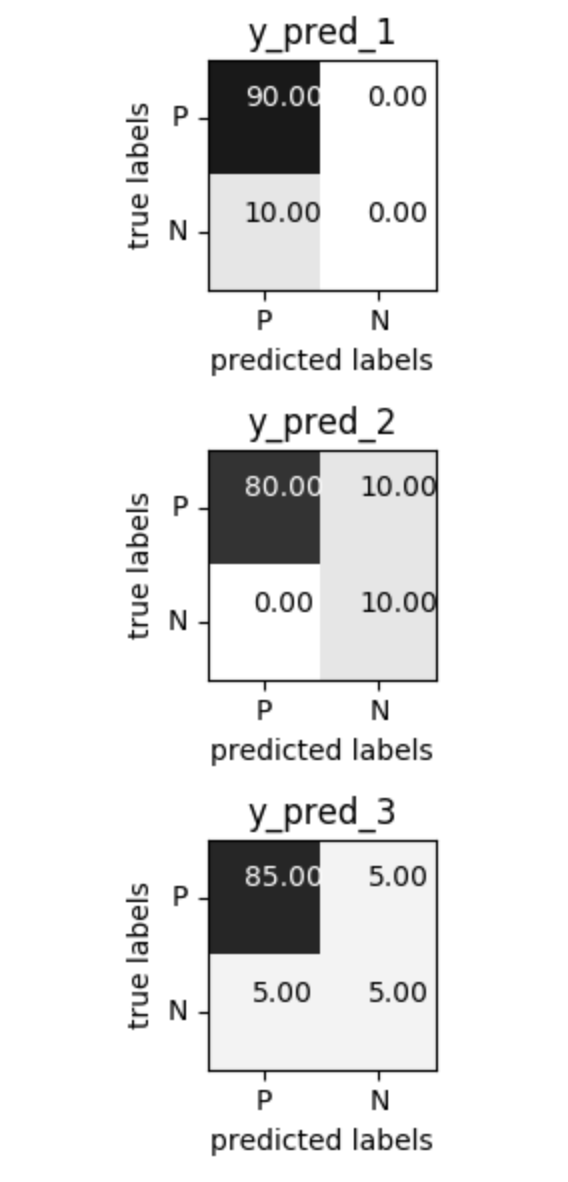

.left-column[
![:scale 50%](images/confusion_matrix_col.png)]

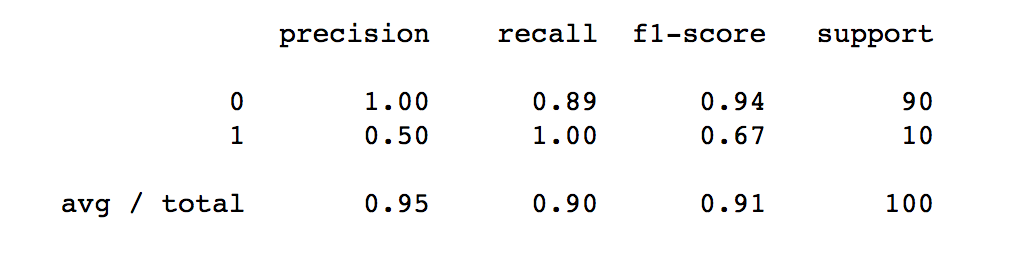

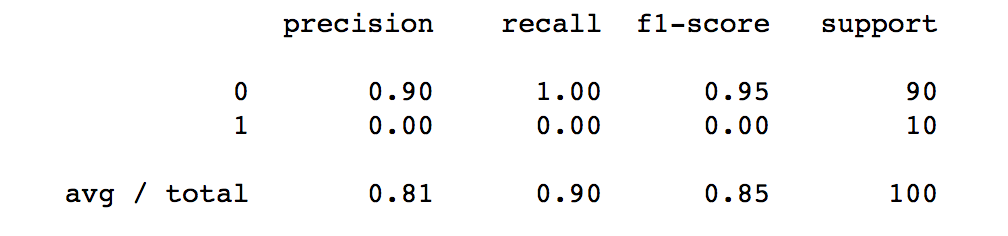

.right-column[

![:scale 100%](images/classification_report_1.png)


![:scale 100%](images/classification_report_2.png)

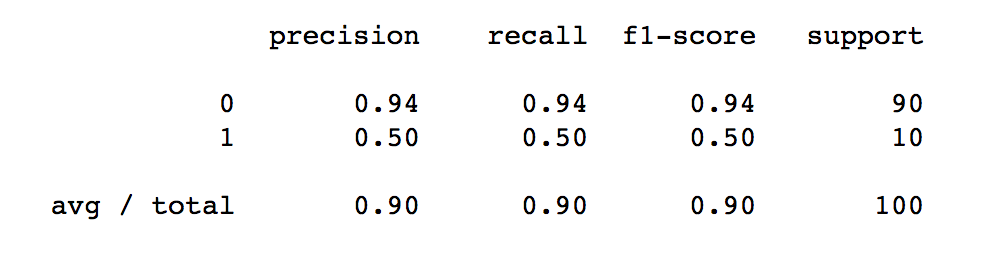

![:scale 100%](images/classification_report_3.png)
]
???
---
class:spacious
# Goal setting!
- What do I want? What do I care about?
- Can I assign costs to the confusion matrix?
- What guarantees do we want to give?

???
(precision, recall, or something else)
(i.e. a false positive costs me 10 dollars; a false negative, 100 dollars)
---
# Changing Thresholds
.tiny-code[
```python
data = load_breast_cancer()

X_train, X_test, y_train, y_test = train_test_split(
    data.data, data.target, stratify=data.target, random_state=0)

lr = LogisticRegression().fit(X_train, y_train)
y_pred = lr.predict(X_test)

print(classification_report(y_test, y_pred))
```
```
          precision   recall  f1-score  support
0              0.91     0.92      0.92       53
1              0.96     0.94      0.95       90
avg/total      0.94     0.94      0.94      143
```
```python
y_pred = lr.predict_proba(X_test)[:, 1] > .85

print(classification_report(y_test, y_pred))
```
```
          precision   recall  f1-score  support
0              0.84     1.00      0.91       53
1              1.00     0.89      0.94       90
avg/total      0.94     0.93      0.93      143

```
]

???
---
# Precision-Recall curve
```python
X, y = make_blobs(n_samples=(2500, 500), cluster_std=[7.0, 2],
                  random_state=22)

X_train, X_test, y_train, y_test = train_test_split(X, y)

svc = SVC(gamma=.05).fit(X_train, y_train)

precision, recall, thresholds = precision_recall_curve(
    y_test, svc.decision_function(X_test))
```

???
---

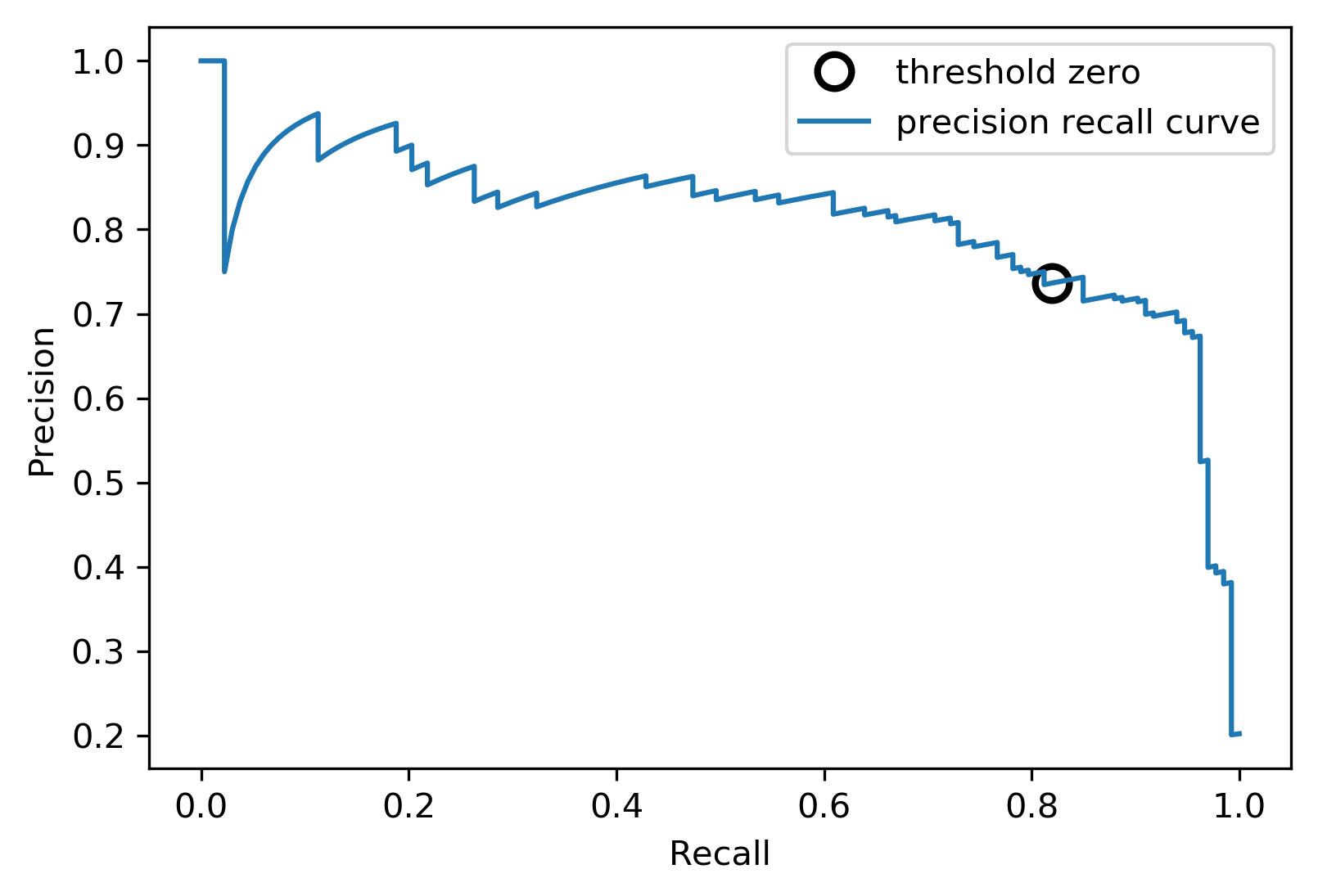

# Precision-Recall curve
.center[
![:scale 75%](images/precision_recall_curve.png)
]
???
---

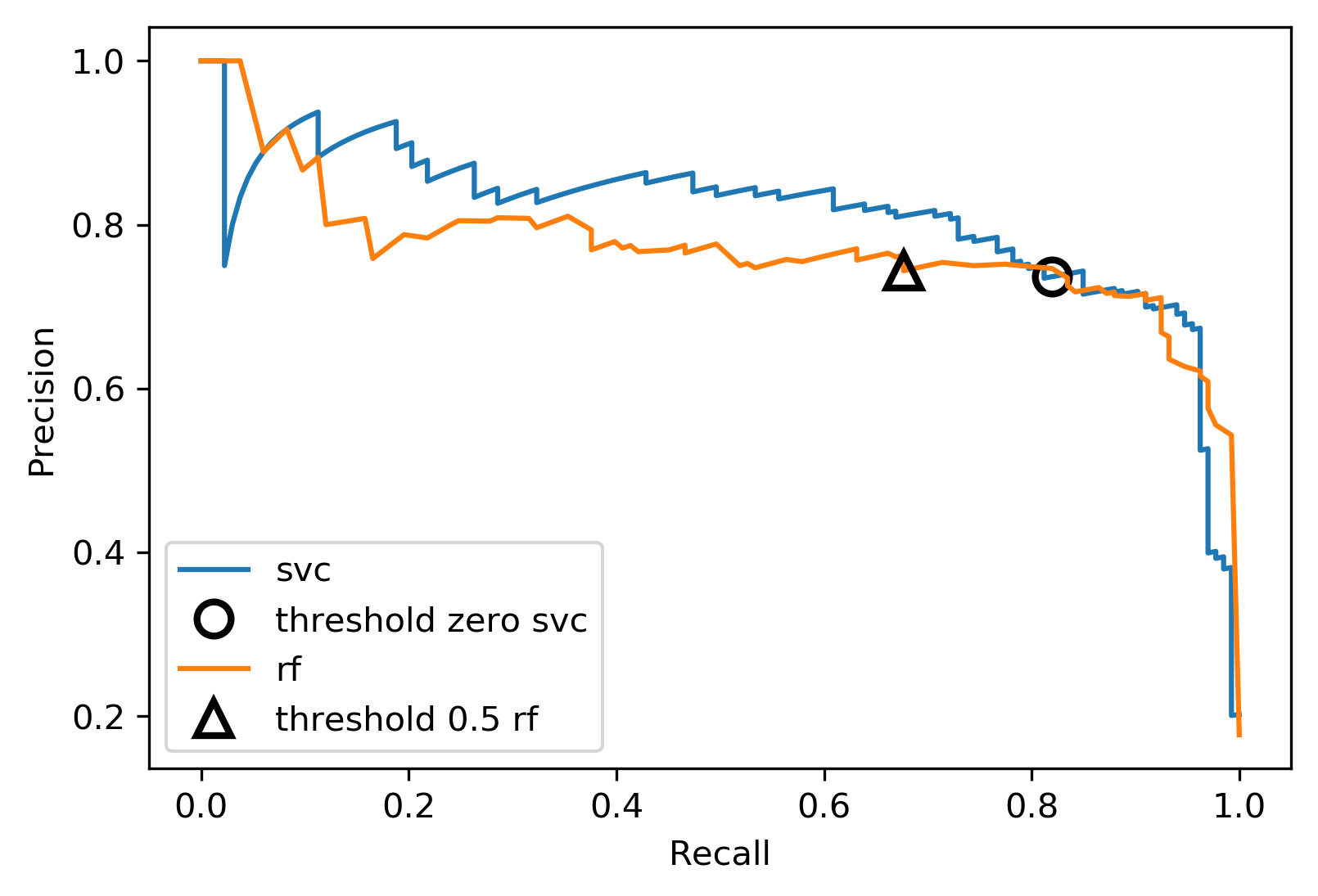

# Comparing RF and SVC
.center[
![:scale 75%](images/rf_vs_svc.png)
]
???

---

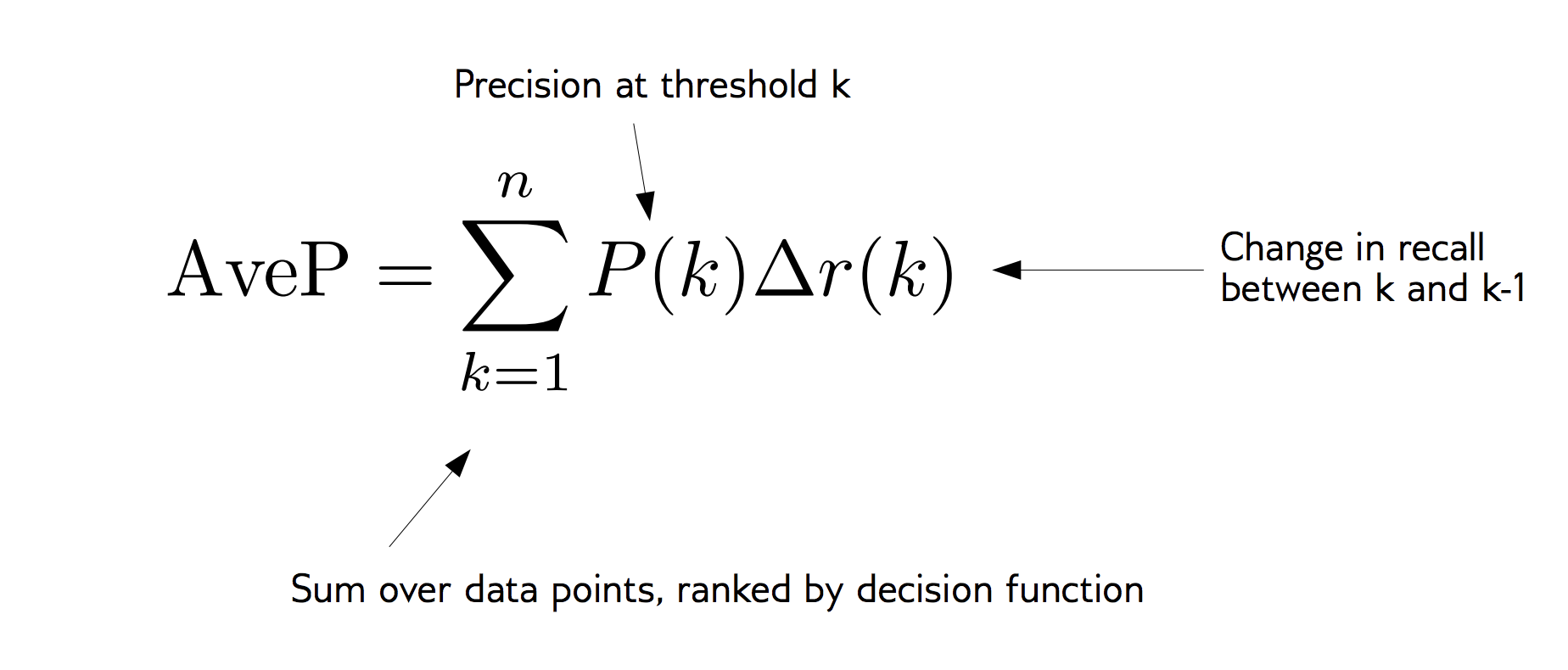

# Average Precision
.center[
![:scale 100%](images/avg_precision.png)
]
???
Related to area under the precision-recall curve
(with step interpolation)
---
# F1 vs average Precision
.smaller[
```python
from sklearn.metrics import f1_score
print("f1_score of random forest: {:.3f}".format(
      f1_score(y_test, rf.predict(X_test))))
print("f1_score of svc: {:.3f}".format(f1_score(y_test, svc.predict(X_test))))
```

```
f1_score of random forest: 0.709
f1_score of svc: 0.715
```
```python
from sklearn.metrics import average_precision_score
ap_rf = average_precision_score(y_test, rf.predict_proba(X_test)[:, 1])
ap_svc = average_precision_score(y_test, svc.decision_function(X_test))
print("Average precision of random forest: {:.3f}".format(ap_rf))
print("Average precision of svc: {:.3f}".format(ap_svc))
```
```
Average precision of random forest: 0.682
Average precision of svc: 0.693
```
]
???
AP only considers ranking!
---

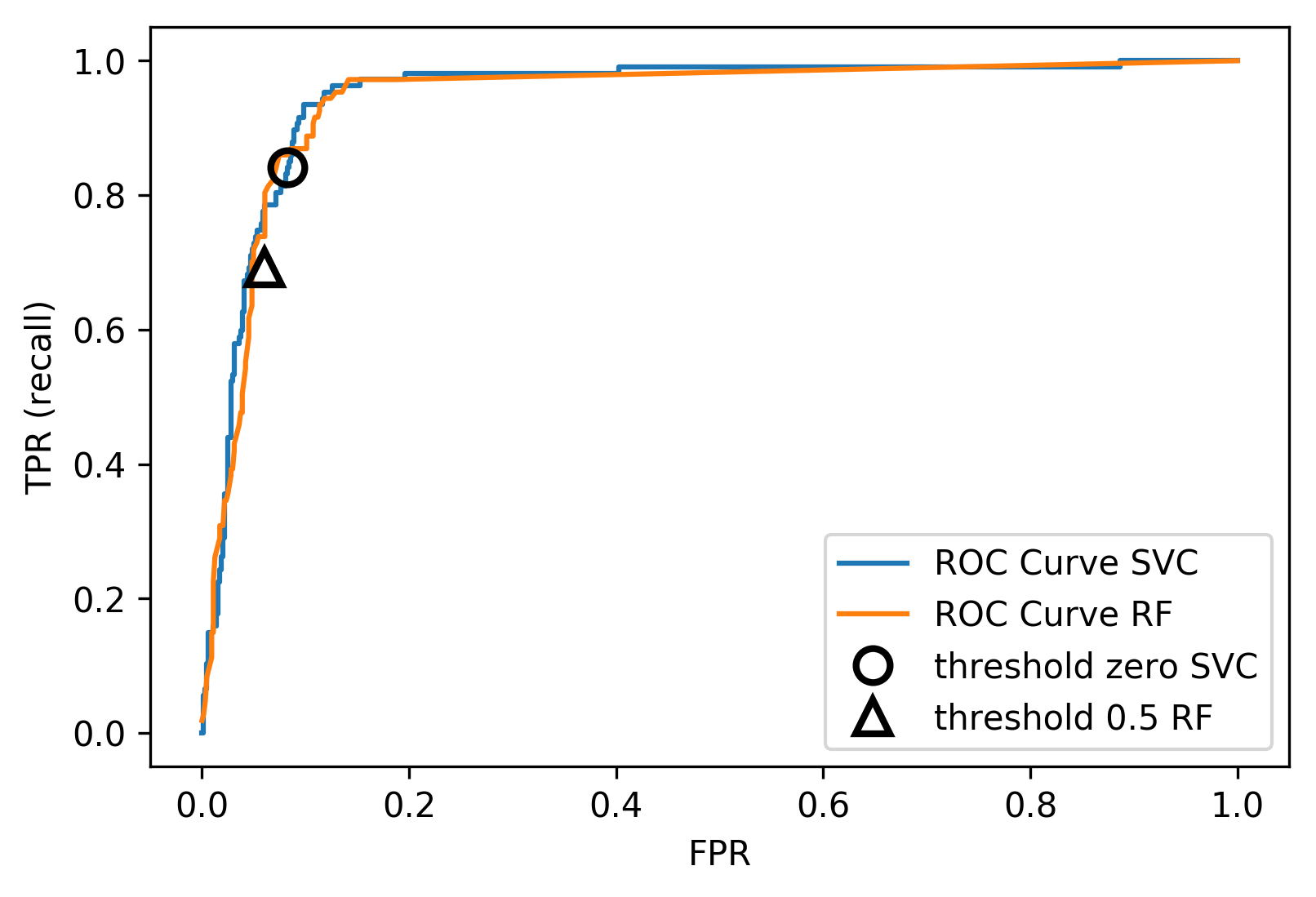

# ROC Curve
.center[
![:scale 100%](images/zoo.png)
]
`$$ \text{FPR} = \frac{\text{FP}}{\text{FP}+\text{TN}}$$`
`$$ \text{TPR} = \frac{\text{TP}}{\text{TP}+\text{FN}} = \text{recall}$$`
???
---
.center[
![:scale 75%](images/roc_curve.png)
]
???
---
# ROC AUC
- Area under ROC Curve
- Always .5 for random/constant prediction
.tiny-code[
```python
from sklearn.metrics import roc_auc_score
rf_auc = roc_auc_score(y_test, rf.predict_proba(X_test)[:,1])
svc_auc = roc_auc_score(y_test, svc.decision_function(X_test))
print("AUC for random forest: {:, .3f}".format(rf_auc))
print("AUC for SVC: {:, .3f}".format(svc_auc))
```

```
AUC for random forest: 0.937
AUC for SVC: 0.916
```
]
The Relationship Between Precision-Recall and ROC Curves

https://www.biostat.wisc.edu/~page/rocpr.pdf
???
---

# Summary of metrics for binary classification

Threshold-based:
- accuracy
- precision, recall, f1

Ranking:
- average precision
- ROC AUC

???
add log loss?
---
class: centre,middle
# Multi-class classification
???
---
class:split-40
#Confusion Matrix
.left-column[
.tiny-code[
```python
from sklearn.datasets import load_digits
from sklearn.metrics import accuracy_score

digits = load_digits()
 # data is between 0 and 16
X_train, X_test, y_train, y_test = train_test_split(
    digits.data / 16., digits.target, random_state=0)
lr = LogisticRegression().fit(X_train, y_train)
pred = lr.predict(X_test)
print("Accuracy: {:.3f}".format(accuracy_score(y_test, pred)))
print("Confusion matrix:")
print(confusion_matrix(y_test, pred))
```
```
Accuracy: 0.964
Confusion matrix:
[[37  0  0  0  0  0  0  0  0  0]
 [ 0 41  0  0  0  0  1  0  1  0]
 [ 0  0 44  0  0  0  0  0  0  0]
 [ 0  0  0 43  0  0  0  0  1  1]
 [ 0  0  0  0 37  0  0  1  0  0]
 [ 0  0  0  0  0 47  0  0  0  1]
 [ 0  1  0  0  0  0 51  0  0  0]
 [ 0  0  0  0  1  0  0 47  0  0]
 [ 0  3  1  0  0  1  0  0 43  0]
 [ 0  0  0  0  0  2  0  0  1 44]]
```
]
]
.right-column[
.tiny-code[
```python
print(classification_report(y_test, pred))
```
```
             precision    recall  f1-score   support

0       1.00      1.00      1.00        37
          1       0.91      0.95      0.93        43
          2       0.98      1.00      0.99        44
          3       1.00      0.96      0.98        45
          4       0.97      0.97      0.97        38
          5       0.94      0.98      0.96        48
          6       0.98      0.98      0.98        52
          7       0.98      0.98      0.98        48
          8       0.93      0.90      0.91        48
          9       0.96      0.94      0.95        47

avg / total       0.96      0.96      0.96       450
```
]
]
???
---
# Averaging strategies
- "macro", "weighted", "micro" (multi-label), "samples" (multi-label)

`$$\text{macro }\frac{1}{\left|L\right|} \sum_{l \in L} R(y_l, \hat{y}_l)$$`

`$$\text{weighted } \frac{1}{n} \sum_{l \in L} n_l R(y_l, \hat{y}_l)$$`

.smaller[
```python
print("Micro average: ", recall_score(y_test, pred, average="weighted"))
print("Macro average: ", recall_score(y_test, pred, average="macro"))
```
```
Micro average: 0.964
Macro average: 0.964
```
]

???
micro vs macro same for other metrics.

---
# Multi-class ROC AUC
- Hand & Till, 2001, one vs one
`$$ \frac{1}{c(c-1)}\sum_{j=1}^{c}\sum_{k \neq j}^{c} AUC(j,k)$$`
- Provost & Domingo, 2000, one vs rest
`$$ \frac{1}{c}\sum_{j=1}^{c}p(j) AUC(j,\text{rest}_j)$$`
- https://github.com/scikit-learn/scikit-learn/pull/7663
???
FIXME unify notation with slide on averaging
---
# Summary of metrics for binary classification

Threshold-based:
- accuracy
- precision, recall, f1 (macro average, weighted)

Ranking:
- OVR ROC AUC
- OVO ROC AUC

???

---

class: middle
# Picking metrics

???

- Accuracy rarely what you want
- Problems are rarely balanced
- Find the right criterion for the task
- OR pick one arbitrarily, but at least think about it
- Emphasis on recall or precision?
- Which classes are the important ones?
---
# Using metrics in cross-validation
.smaller[
```python
X, y = make_blobs(n_samples=(2500, 500), cluster_std=[7.0, 2],
                  random_state=22)

# default scoring for classification is accuracy
scores_default = cross_val_score(SVC(), X, y)

# providing scoring="accuracy" doesn't change the results
explicit_accuracy =  cross_val_score(SVC(), X, y, scoring="accuracy")

# using ROC AUC
roc_auc =  cross_val_score(SVC(), X, y, scoring="roc_auc")

print("Default scoring:", scores_default)
print("Explicit accuracy scoring:", explicit_accuracy)
print("AUC scoring:", roc_auc)
```
```
Default scoring: [ 0.92   0.904  0.913]
Explicit accuracy scoring: [ 0.92   0.904  0.913]
AUC scoring: [ 0.93   0.885  0.923]
```
]

???
Same for GridSearchCV

Will make GridSearchCV.score use your metric!

---
# Built-in scoring
```python
from sklearn.metrics.scorer import SCORERS
print("\n".join(sorted(SCORERS.keys())))
```
.smaller[
```
accuracy                      log_loss                      precision_micro
adjusted_mutual_info_score    mean_absolute_error           precision_samples
adjusted_rand_score           mean_squared_error            precision_weighted
average_precision             median_absolute_error         r2
completeness_score            mutual_info_score             recall
explained_variance            neg_log_loss                  recall_macro
f1                            neg_mean_absolute_error       recall_micro
f1_macro                      neg_mean_squared_error        recall_samples
f1_micro                      neg_mean_squared_log_error    recall_weighted
f1_samples                    neg_median_absolute_error     roc_auc
f1_weighted                   normalized_mutual_info_score  v_measure_score
fowlkes_mallows_score         precision
homogeneity_score             precision_macro

```
]

???
---
class:spacious
# Providing you your own callable
- Takes estimator, X, y
- Returns score – higher is better (always!)
```python
def accuracy_scoring(est, X, y):
        return (est.predict(X) == y).mean()
```
???
